- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SCL
- Product Type
- Line-interactive UPS

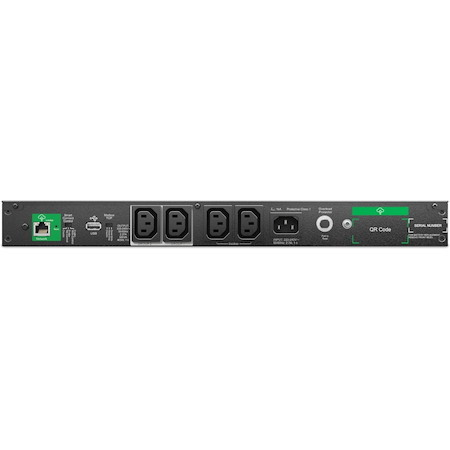

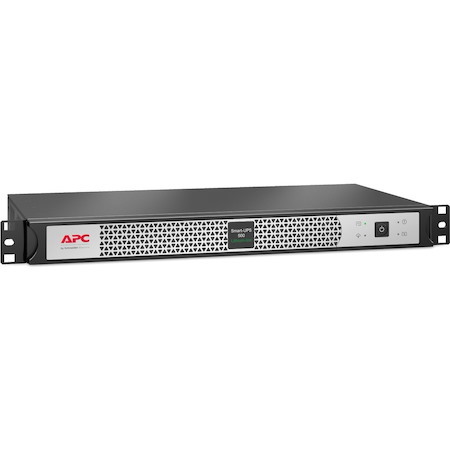

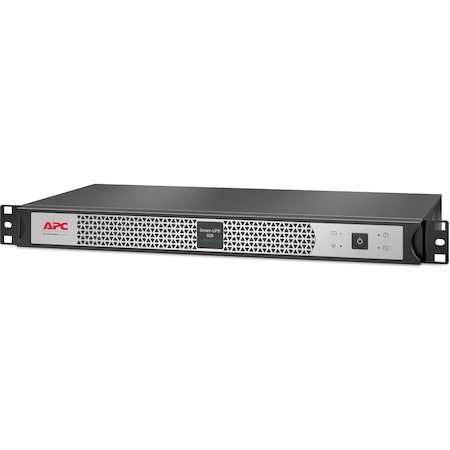

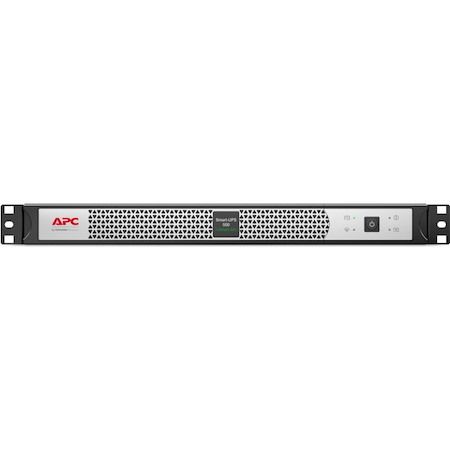

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
- 5 year repair or replace
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- IEC 60320 C14
- Receptacle Detail
- 4 x IEC 60320 C13
- Number of Battery & Surge Outlets
- 4
- Transfer Time
- 10 ms
- EMI/RFI Noise Filter
- Yes
- Application/Usage
- Router
- Network Hub
- Switch
- POS Terminal
- Server
- Network Device
- Mission Critical Equipment
- Power Description
- Load Capacity (VA)
- 500 VA
- Load Capacity (Watt)
- 400 W
- Input Voltage
- 230 V
- Input Voltage Range
- 208 V AC - 253 V AC
- Output Voltage
- 230 V AC
- Input Frequency
- 63 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 510 J
- Management
- Network Management
- SmartConnect
- Alarm
- On Battery
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
- Status Indicators:
- Disconnected battery notification
- Battery failure notification
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Energy
- 108 kJ
- Backup/Run Time (Full Load)
- 2.70 Minute
- Backup/Run Time (Half Load)
- 6.30 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 14°F (-10°C) - 104°F (40°C)
- Maximum Operating Elevation
- 6561 ft
- Maximum Storage Elevation
- 49212 ft
- Storage Relative Humidity
- 10% - 90%
- Sound Emission (A-Weighted)
- 45 dB(A)
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Silver
- Height
- 1.7"
- Width
- 17"
- Depth
- 9.1"
- Rack Height
- 1U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 8.95 lb
- Miscellaneous
- Package Contents
- Installation guide
- Rack Mounting support rails
- USB cable
- Certifications & Standards
- C-tick|CE|EAC|RCM|UK PSTI
- Energy Star
- Yes
- Green Premium
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RMI1UC_ROHS_DECLARATION&p_FileName=SCL500RMI1UCKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=528692798&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=528692798&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
- REACH free of SVHC
- No
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
