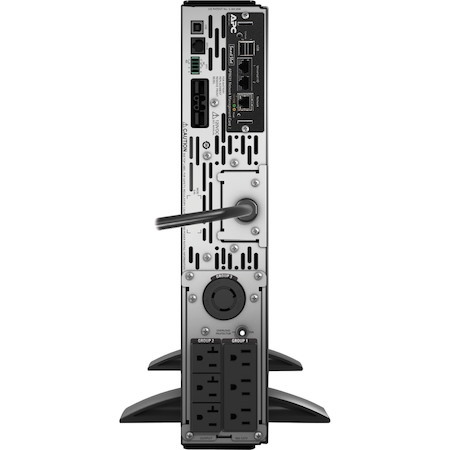

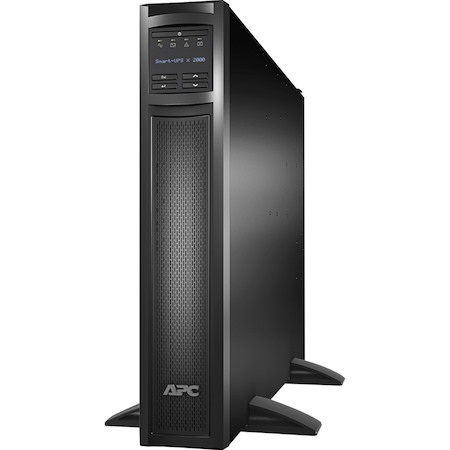

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- X
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA L5-20P
- Receptacle Type
- NEMA L5-20P
- Receptacle Detail
- 1 x NEMA L5-20R
- 3 x NEMA 5-15R
- 3 x NEMA 5-20R
- Number of Battery & Surge Outlets
- 7
- Cord Length
- 10 ft
- Transfer Time
- 4 ms
- Application/Usage
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- Critical System
- Storage Device
- Network Device
- Business
- Security System
- Communication System
- IT Equipment
- Power Description
- Load Capacity (VA)
- 1920 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V
- Input Voltage Range
- 70 V AC - 153 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 540 J
- Management
- Network Management
- USB
- Alarm
- On Battery
- Low Battery
- Overload
- Configurable Delay
- Changing Utility Power
- UPS Power Condition
- Controls/Indicators
- Status Indicators
LED Status Indicators:
- Unit Status
- Power Status
- On Line
- On Battery
- Replace Battery
- Overload
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Battery Energy
- 2484 kJ
- Backup/Run Time (Full Load)
- 10.90 Minute
- Backup/Run Time (Half Load)
- 27.60 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 9842.52 ft
- Maximum Storage Elevation
- 49212.60 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 55 dB(A)
- Thermal Dissipation
- 59.49 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.3"
- Width
- 17"
- Depth
- 26.3"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 84.77 lb
- Miscellaneous
- Package Contents
- Smart-UPS X 1920VA Rack/Tower UPS
- CD with software
- Documentation CD
- Installation guide
- Network management card
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- Certifications & Standards
- BSMI|CSA|NOM|TÜV|VCCI Class A
- Software Included
- Powerchute® Business Edition Software
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2KR2UNCX145_ROHS_DECLARATION&p_FileName=SMX2KR2UNCX145KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326959&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326959&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Battery Directive
