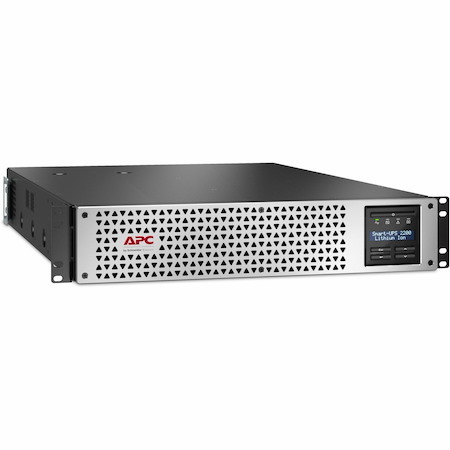

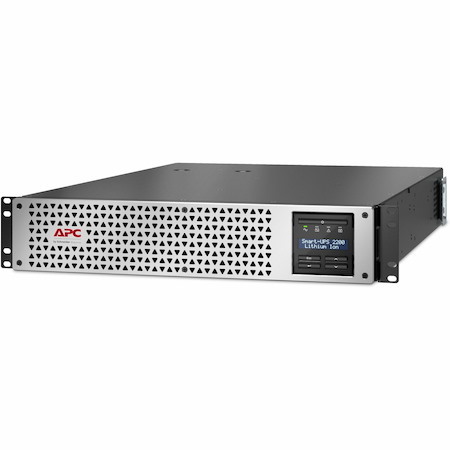

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Packaged Quantity
- 1
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
- 5 year repair or replace
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA L5-20P
- Receptacle Type
- NEMA L5-20P
- Receptacle Detail
- 1 x NEMA L5-20R
- 6 x NEMA 5-20R
- Cord Length
- 8 ft
- Transfer Time
- 10 ms
- Application/Usage
- IT
- Network
- Business
- Critical System
- Server
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- POS
- Router
- Switch
- Hub
- Power Description
- Load Capacity (VA)
- 1920 VA
- Load Capacity (Watt)
- 1920 W
- Input Voltage
- 110 V
- 120 V
- 125 V
- Input Voltage Range
- 75 V AC -154 V AC
- 82 V AC - 143 V AC
- Output Voltage
- 110 V AC
- 120 V AC
- 125 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 530 J
- Display & Graphics
- Display
- LCD/LED
- Management
- Network Management
- SmartConnect
- Alarm
- On Battery
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
LED Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
- Interfaces/Ports
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Energy
- 1209.6 kJ
- Backup/Run Time (Full Load)
- 7.80 Minute
- Backup/Run Time (Half Load)
- 16.40 Minute
- Battery Life
- 10 Year
- Typical Battery Recharge Time
- 2 Hour
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Sound Emission
- 55 dB
- Thermal Dissipation
- 63.01 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Silver
- Height
- 3.4"
- Width
- 17"
- Depth
- 26.9"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Weight (Approximate)
- 70.33 lb
- Miscellaneous
- Package Contents
- Smart-UPS 2200VA Rack-mountable UPS
- Rack Mounting brackets
- Rack Mounting support rails
- Screw
- Washer
- USB cable
- Ethernet patch cable
- Certifications & Standards
- ENERGY STAR V2.0 (USA)|cULus
- Software Included
- Powerchute Serial Edition
- Energy Star
- Yes
- Green Premium
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL2K2RM2UCL_ROHS_DECLARATION&p_FileName=SMTL2K2RM2UCLKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168923&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168923&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
