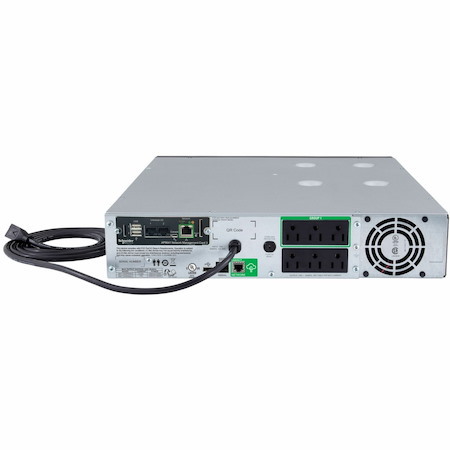

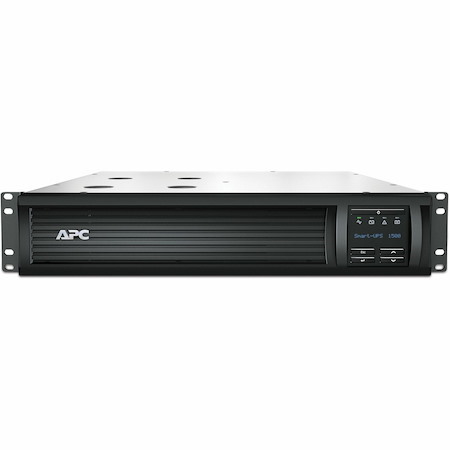

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Packaged Quantity
- 1
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 Years
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15P
- Receptacle Detail
- 6 x NEMA 5-15R
- Cord Length
- 8 ft
- Transfer Time
- 10 ms
- Application/Usage
- Server
- POS
- Router
- Switch
- Hub
- Network Device
- IT
- Business
- Critical System
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- Power Description
- Load Capacity (VA)
- 1440 VA
- Load Capacity (Watt)
- 1000 W
- Input Voltage
- 120 V
- Input Voltage Range
- 75 V AC - 154 V AC
- 82 V AC - 144 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 680 J
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SmartConnect
- Alarm
- Low Battery
- On Battery
- Configurable Delay
- Controls/Indicators
- Status Indicators
Multi-Function LCD status
- Interfaces/Ports
- USB
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Chemistry
- Lead Acid
- Battery Energy
- 1555.2 kJ
- Backup/Run Time (Full Load)
- 7.15 Minute
- Backup/Run Time (Half Load)
- 25.85 Minute
- Battery Life
- 6 Year
- Typical Battery Recharge Time
- 3 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Storage Relative Humidity
- 95%
- Sound Emission (A-Weighted)
- 45 dB(A)
- Thermal Dissipation
- 65.94 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.4"
- Width
- 17"
- Depth
- 18.8"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 58.42 lb
- Miscellaneous
- Package Contents
- Smart-UPS 1500VA Rack-Mountable UPS
- Installation Guide
- Rack Mounting Support Rails
- USB Cable
- Certifications & Standards
- cULus|ENERGY STAR V2.0 (USA)
- Energy Star
- Yes
- Green Premium
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM2UCNC_ROHS_DECLARATION&p_FileName=SMT1500RM2UCNCKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168917&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168917&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
