- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SMT
- Packaged Quantity
- 1
- Product Type
- Line-interactive UPS

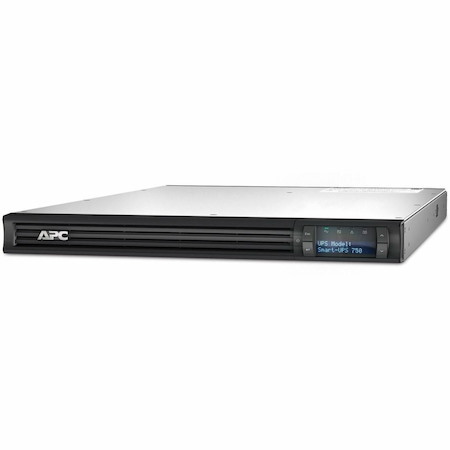

This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity. The 750VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15P
- Receptacle Detail
- 4 x NEMA 5-15R
- Cord Length
- 8 ft
- Transfer Time
- 8 ms
- Application/Usage
- Business
- Server
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- Power Description
- Load Capacity (VA)
- 750 VA
- Load Capacity (Watt)
- 600 W
- Input Voltage
- 120 V
- Input Current
- 6.25 A
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 540 J
- Display & Graphics
- Display
- LCD
- Management
- Alarm
- On Battery
- Low Battery
- Configurable Delay
- Interfaces/Ports
- USB
- No
- Battery Information
- Battery Chemistry
- Lead Acid
- Battery Energy
- 604.8 kJ
- Backup/Run Time (Full Load)
- 4.11 Minute
- Backup/Run Time (Half Load)
- 14.93 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 5 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Storage Relative Humidity
- 95%
- Sound Emission (A-Weighted)
- 46 dB(A)
- Thermal Dissipation
- 25.79 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 1.7"
- Width
- 17"
- Depth
- 19.8"
- Rack Height
- 1U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 34.83 lb
- Miscellaneous
- Package Contents
- Smart-UPS SMT 750VA Rack-mountable UPS
- User Manual
- Certifications & Standards
- CSA
- Green Premium
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750RM1U_ROHS_DECLARATION&p_FileName=SMT750RM1UKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112028&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112028&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
