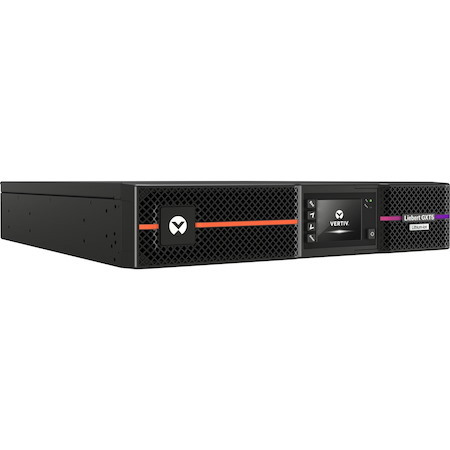

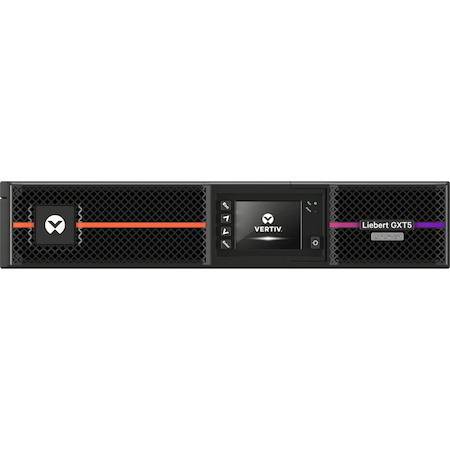

The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Series
- GXT
- Packaged Quantity
- 1
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L5-20P
- Receptacle Type
- NEMA 5-20R
- NEMA 5-15/20R

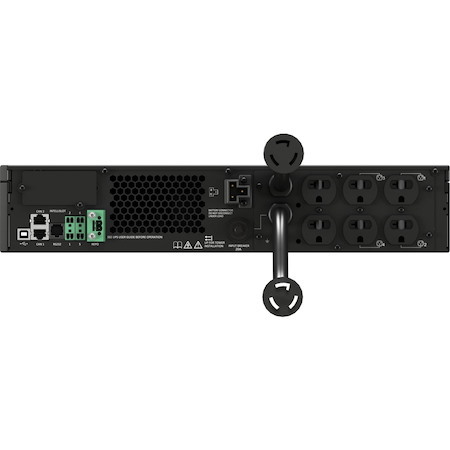

- Receptacle Detail
- 1 x NEMA L5-20R
- 2 x NEMA 5-20R
- 4 x NEMA 5-15/20R
- Transfer Time
- 0 ns
- Phase
- Single Phase
- Application/Usage
- Critical System
- IT System
- Server Room
- Network Closet
- Edge Computing
- Power Description
- Load Capacity (VA)
- 2000 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 102 V AC - 150 V AC
- Waveform Type
- Pure Sine Wave
- Management
- Network Management
- SNMP/Webcard
- Interfaces/Ports
- USB (HID Compliant) Port
- Yes
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Backup/Run Time (Full Load)
- 13 Minute
- Backup/Run Time (Half Load)
- 28 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -4°F (-20°C) - 140°F (60°C)
- Maximum Operating Elevation
- 10000 ft
- Sound Emission
- 45 dB
- Physical Characteristics
- Height
- 3.4"
- Width
- 16.9"
- Depth
- 18.5"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 39.68 lb
- Miscellaneous
- Package Contents
- GXT5LI-2000LVRT2UXL 2000VA Rack/Tower UPS
- USB Type A to USB Type B Cable 1.8 Meter (6ft) in Length
- Printed Quick Start Guide with Safety Instructions
- Adjustable 4-Post Rack Mounting Kit
- Support Base for Tower Configuration
- Vertiv™Power Assist (USB Management Software; Free Download)
- Vertiv™Power Insight (Network Management Software; Free Download) (Optional RDU101 Network Card Required)
- Software Included
- Yes
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 2
