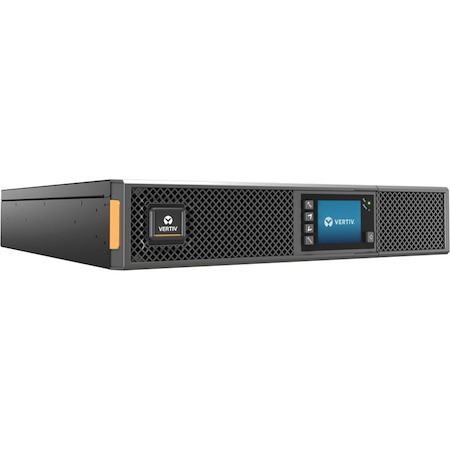

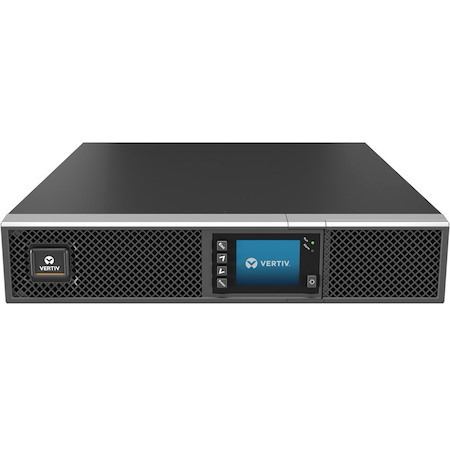

Vertiv Liebert GXT5 UPS - 2000VA/1800W 120V | Online Rack Tower Energy Star

  • Part: 1299935
  • Model: GXT5-2000LVRT2UXL
$1,960.00

Availability

In Stock

The Vertiv Liebert GXT5 UPS, with a capacity of 2000VA/1800W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

More from the Manufacturer

  • General Information
    • Manufacturer
    • Vertiv
    • Manufacturer Website Address
    • http://www.vertiv.com/
    • Brand Name
    • Liebert
    • Product Series
    • GXT
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Plug/Connector Type
    • NEMA L5-20P
    • Receptacle Type
    • NEMA 5-15/20R
    • NEMA L5-20R

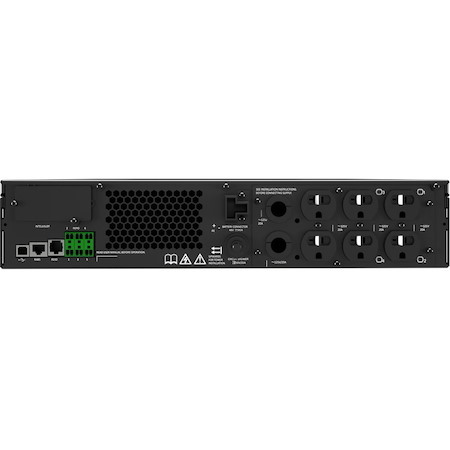

    • Receptacle Detail
    • 6 x NEMA 5-15/20R
    • 1 x NEMA L5-20R
    • Emergency Power OFF
    • Yes
    • Cord Length
    • 10 ft
    • Transfer Time
    • 0 ns
    • Phase
    • Single Phase
    • Application/Usage
    • IT Equipment
    • Mission Critical Equipment
  • Power Description
    • Load Capacity (VA)
    • 2000 VA
    • Load Capacity (Watt)
    • 1800 W
    • Input Voltage
    • 120 V AC
    • Input Voltage Range
    • 60 V AC - 150 V AC
    • Input Current
    • 16 A
    • Output Voltage
    • 120 V AC
    • Output Current
    • 16.70 A
    • Input Frequency
    • 70 Hz
    • Waveform Type
    • Pure Sine Wave
    • Circuit Breaker
    • Yes
    • User Selectable Output
    • Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%

    • Utility (AC) Mode Overload
      • >200% for 250ms
      • 150- 200% for 2 seconds
      • 125- 150% for 50 seconds
      • 105-125% for 60 seconds
  • Controls/Indicators
    • Status Indicators
    • Color LCD
  • Interfaces/Ports
    • Serial Port
    • Yes
    • VGA
    • No
    • Modem (RJ-11)
    • No
    • EPO Port
    • Yes
    • USB (HID Compliant) Port
    • Yes
  • Battery Information
    • Number of Batteries
    • 3
    • Battery Characteristics
    • Valve-regulated, Non-spillable
    • Battery Chemistry
    • Lead Acid
    • Battery Size
    • 12V
    • Backup/Run Time (Full Load)
    • 3 Minute
    • Backup/Run Time (Half Load)
    • 9 Minute
    • Number of External Battery Cabinets
    • 1
    • Backup/Run Time With External Battery Cabinet (Full Load)
    • 17 Minute
    • Backup/Run Time With External Battery Cabinet (Half Load)
    • 42 Minute
    • Battery Life
    • 5 Year
    • Typical Battery Recharge Time
    • 3 Hour
    • Hot Pluggable
    • Yes
    • Hot Swappable
    • Yes
  • Environmental Conditions
    • Environmental Sensors
    • Leak Detection Sensor
    • Temperature Sensor
    • Humidity Sensor
    • Maximum Operating Temperature
    • 104°F (40°C)
    • Storage Temperature
    • -4°F (-20°C) - 140°F (60°C)
    • Maximum Operating Elevation
    • 9842.52 ft
    • Maximum Storage Elevation
    • 49212.60 ft
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Height
    • 3.4"
    • Width
    • 16.9"
    • Depth
    • 18.5"
    • Rack Height
    • 2U
    • Form Factor
    • Rack/Tower
    • Weight (Approximate)
    • 47.50 lb
  • Miscellaneous
    • Package Contents
      • GXT5 2000VA 120V UPS
      • 4 Post Rack Mounting
      • Tower Stand
      • USB Cable
      • User Guide
      • Safety Instruction Manual
    • Additional Information
      • Operating Temperature,°F (°C):+32 to +104 (0 to 40)
      • Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
      • Relative Humidity:0% to 95%, non-condensing
      • Audible Noise:
        • <48dBA max @ 3 ft. (1m) front and sides
        • <48dBA, at 3 ft. (1m) rear
    • Certifications & Standards
      • UL1778, 4th Ed.
      • FCC Part 15 Class A
      • ANSI C62.41 Cat. B
      • ISTA 1A
    • Software Included
    • Free Download - Power Insight 2.2
    • Assembly Required
    • No
    • Energy Star
    • Yes
    • Country of Origin
    • China
    • TAA Compliant
    • No
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS) 2
