Eaton 9PX 2200VA 2000W 208V Online Double-Conversion UPS - L6-20P, 8 C13, 2 C19 Outlets, Lithium-ion Battery, Cybersecure Network Card Option, 2U Rack/Tower - Battery Backup

  • Part: 1428039
  • Model: 9PX2200GRT-L
$3,332.00

Availability

Out of Stock

2.2kVA/2kW/208V Long-Term Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. Ideal for locations that are difficult to access or infrequently maintained, the 9PX2200GRT-L is an efficient "set it and forget it" solution. It's ideal power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The hot-swappable maintenance-free lithium-ion battery modules have a service life of 8 to 10 years. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. These lithium iron phosphate (LFP) batteries provide 80 to 120 percent more runtime at full load than equivalent lead-acid UPS systems, while weighing up to 40 percent less, reducing the overall UPS weight.

Supports External Batteries for Scalable Extended Runtime

For mission-critical applications demanding continuous uptime, the UPS supports the connection of up to four expanded battery modules (9PXEBM72RT-L, sold separately) for hours of extended runtime.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The Network-M3 network card (sold separately or as a network card bundle) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Series
    • 9PX
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information

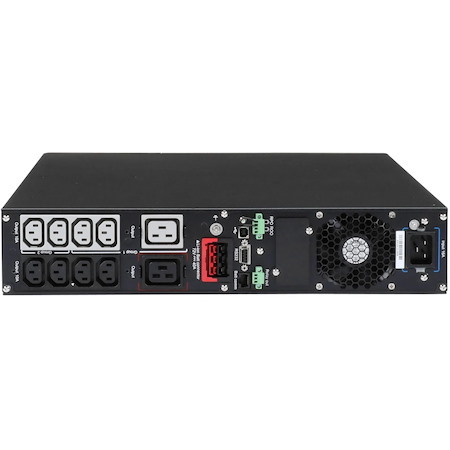

    • Plug/Connector Type
    • NEMA L6-20P
    • Receptacle Type
    • IEC 60320 C13
    • IEC 60320 C19
    • Receptacle Detail
    • 8 x IEC 60320 C13
    • 2 x IEC 60320 C19
    • Application/Usage
    • IT
    • Edge Computing
    • Medical
    • Healthcare
    • University
    • Industrial Automation System
    • Electronic
  • Power Description
    • Load Capacity (VA)
    • 2200 VA
    • Load Capacity (Watt)
    • 2000 W
    • Input Voltage
    • 230 V AC
    • Input Frequency
    • 60 Hz
    • Waveform Type
    • True Sine Wave
  • Management
    • Network Management
    • ModBus-MS Card
    • Relay-MS Card
    • Network-M3 Card
  • Controls/Indicators
    • Status Indicators
    • Grpahical Display
  • Interfaces/Ports
    • Serial Port
    • Yes
    • Network (RJ-45)
    • Yes
    • USB (HID Compliant) Port
    • Yes
  • Battery Information
    • Battery Chemistry
    • Lithium Ion (Li-Ion)
    • Hot Swappable
    • Yes
    • Replaceable Battery
    • Yes
  • Environmental Conditions
    • Sound Emission
    • 47 dB
  • Physical Characteristics
    • Color Family
    • Dual Color
    • Product Color
    • Black
    • Silver
    • Height
    • 3.4"
    • Width
    • 17.3"
    • Depth
    • 23.8"
    • Rack Height
    • 2U
    • Form Factor
    • Rack/Tower
    • Weight (Approximate)
    • 48.72 lb
  • Miscellaneous
    • Package Contents
      • 9PX UPS
      • Quick Start Guide
      • Safety Instructions
      • USB Communciation Cable
      • RS-232 Serial Communication Cable
      • 4-post Rail for 19-inch Enclosures
      • Software Leaflet
      • 2 x Pedestals for Tower Poition
