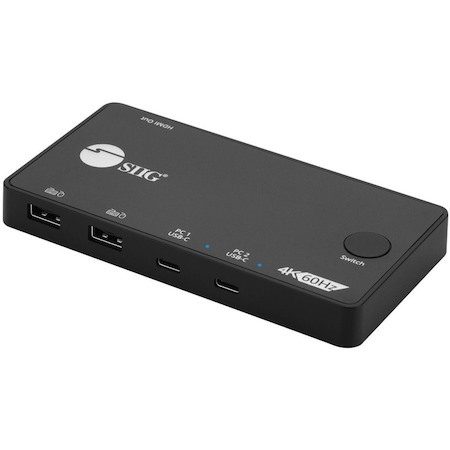

SIIG 2x1 USB-C 4K Video KVM Switch

  • Part: 1786179
  • Model: CE-KV0B11-S1
$114.00

Availability

In Stock

  • General Information
    • Manufacturer
    • SIIG, Inc
    • Manufacturer Website Address
    • http://www.siig.com
    • Brand Name
    • SIIG
    • Packaged Quantity
    • 1
    • Product Type
    • KVM Switchbox

2x1 USB-C KVM Switch, allows you to control 2 USB-C 4K computers using one keyboard and mouse - HDMI 4K@60Hz, 18Gbps, HDCP 2.2, 7.1ch, USB 2.0, Switch Button, works with Apple, HP, Dell & Lenovo

Features
Easily control 2 USB-C DP Alt mode computers/tablets and switch a 4K HDMI display/monitor with one set of keyboard & mouse, a sturdy design to switching computers, and save your workspace for increased efficiently

Effortlessly Switch
Easily switching between computer/device via the top panel push button make this 2x1 USB-C 4K Video KVM Switch user-friendly to operate

4K Ultra HD Resolution
Allows you to connect a single UHD 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and YUV 4:2:0 10-bit through a HDMI port to display the crystal-clear video quality. 3D and deep color are supported

High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI port

Multiple Connectivity Port
Comes with two USB-C or Thunderbolt 3/4 input ports, one HDMI video output port, two USB 2.0 for keyboard & mouse connection, one switch button

Connection

USB Data Transfer
Delivers two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse

Maximum Compatibility
Compatible with Windows® 11 / 10 and macOS® 12.x to 10.13
Supports Plug-n-play, no driver installation required

ABS Housing Design
Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency

Applications

  • Media editing room
  • Photo shooting studio
  • A/V presentation room
  • Meeting room
  • Educational facilities
  • Office
  • Home workstation
  • Workstation
  • Medical office
  • Control center
  • Server room
  • Testing lab
Need to Know Before Buying

1. Please confirm your two computers or tablets with USB-C ports that supports DP 1.2 Alt mode Thunderbolt 3/4, ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer

2. Check the extended display/monitor with HDMI port and supports 4K@60Hz video resolution. IF you are not sure, please check the manual of the monitor

3. Comes with two SIIG USB-C to C cables for connecting two USB-C PCs or tables for best transfer and high quality

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Number of Computers Supported
    • 2
    • Number of Local Users Supported
    • 1
  • Video
    • Maximum Video Resolution
    • 3840 x 2160
  • Interfaces/Ports
    • USB
    • Yes
    • USB 2.0
    • Yes
    • HDMI
    • Yes
    • Number of USB Ports
    • 4
    • Number of HDMI Ports
    • 1
  • Physical Characteristics
    • Height
    • 0.6"
    • Width
    • 2.8"
    • Depth
    • 5.5"
    • Weight (Approximate)
    • 8.16 oz
  • Miscellaneous
    • Package Contents
      • 2x1 USB-C 4K Video KVM Switch
      • 2 x USB-C to C Cable
      • 1 x User Reference Guide
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    • Country of Origin
    • China
