SX42DU-3 is a secure 2x4 4K30 UHD DVI-I mini matrix KVM switch. It enables viewing and controlling four computers with different security classifications simultaneously while securely sharing peripherals - keyboard, video, mouse, audio, and USB devices. It also enables assigning a USB port to a specific computer while switching other peripherals, such as when a USB smart card reader must remain mapped to a certain computer. SX42DU-3 provides the highest possible isolation between connected computers and is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified.
- Highest Security by Design - NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for peripheral Sharing Switch (PSS) devices.
- 4K30 UHD Resolution - Supports resolutions up to 3840×2160 @30Hz.
- Independent Peripheral Switching - Supports independently switching video, audio, keyboard, mouse or USB devices between the primary and secondary computers.
- Work Freely Without Compromising Security - Present the display of any connected computer on both mini-matrix displays at the same time or extend the displays to additional 3rd and 4th external displays.
- Prevent Information Leaks - Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering.
- Filter USB Peripherals - Allow or block specific USB devices based on VID/PID characteristics.
- Smooth Switching Between Computers (Virtual Display Technology) - Automatically switch all peripheral control from one computer to another by dragging the cursor between each computer's display border.
- Biometric/Smart-Card Reader Support - Connect a smartcard/biometric reader to the secure port to support user authentication across multiple isolated computers.

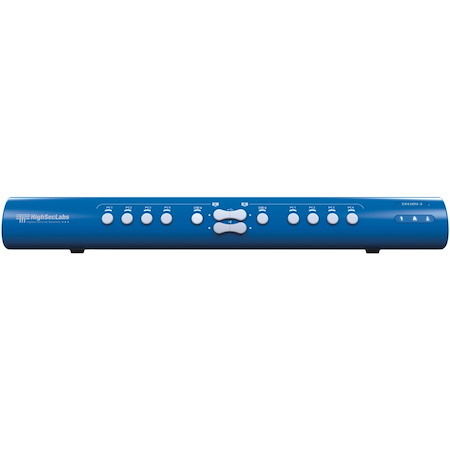

- Keyboard Lock Indication - Caps Lock, Num Lock, and Scroll Lock indication on front panel.
APPLICATIONS
- Command and control centers
- High-security organizations
- Government agencies
- Military
- Financial institutions
- Any other organization that handles sensitive and confidential information
- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- KVM Switchbox
- Technical Information
- Number of Computers Supported
- 4
- Number of Local Users Supported
- 2
- Video
- Maximum Video Resolution
- 3840 x 2160
- Interfaces/Ports
- PS/2 Port
- Yes
- USB
- Yes
- DVI
- Yes
- Number of PS/2 Ports
- 2
- Number of USB Ports
- 11
- Number of DVI Ports
- 6
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V AC to 240V AC
