- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- KVM Switchbox

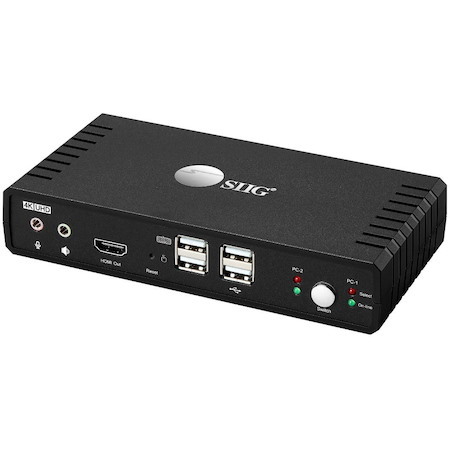

Control two 4K HDMI computers with one keyboard, mouse with microphone input, stereo audio output; 4K@60Hz resolution HDMI 2.0 and HDCP 2.2 compliant
- Device Controls - Allows you to control two 4K HDMI computers with one USB keyboard, USB Mouse, and HDMI display, adds USB Hub, microphone, stereo speaker/headphone connections
- UHD 4K Resolution - Advanced HDMI KVM switcher on the market to offer true 18Gbps Ultra-HD 4K at 60Hz, it features EDID bypass which ensures visual workspaces and screen resolutions that are easy to connect and configure
- Compliance - Compliant with HDMI 2.0 and HDCP 2.2 specification
- Easy Device Switching - Convenient front panel select buttons or keyboard hot-key commands
- USB 2.0 Hub - Includes 2-port USB 2.0 HID Hub for Keyboard and Mouse connection, plus another 2 USB 2.0 ports for connecting USB flash drives or any USB devices to the KVM Switch allowing the connected computers to access them
- Multimedia Connections - Includes 3.5mm audio jack for microphone and stereo audio connections
- Display Auto Scan - Supports screen auto scan between the devices
- LED Indicators - Displays KVM connection and status
- Easy Installation - Plug-n-play, no driver installation needed
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Number of Computers Supported
- 2
- Number of Local Users Supported
- 1
- Video
- Maximum Video Resolution
- 3840 x 2160
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Number of USB Ports
- 6
- Number of HDMI Ports
- 3
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V to 240V
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Height
- 1.3"
- Width
- 3.3"
- Depth
- 6.6"
- Weight (Approximate)
- 7.36 oz
- Miscellaneous

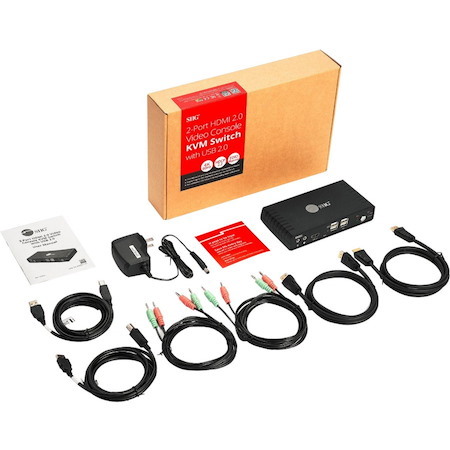

- Package Contents
- 2-Port HDMI 2.0 Video Console KVM Switch with USB 2.0
- Power Adapter 5V/2A
- 2 x HDMI Cable
- 2 x USB 2.0 Cable
- 2 x Audio and Microphone Cable
- User Manual
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
