Eaton 9PX 2200VA 2000W 208V Online Double-Conversion UPS - L6-20P, 8 C13, 2 C19 Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower - Battery Backup

  • Part: 1132317
  • Model: 9PX2200GRT
$1,895.00

Availability

In Stock

2.2kVA/2kW/208V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX2200GRT is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM72RT, sold separately) for hours of extended runtime.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

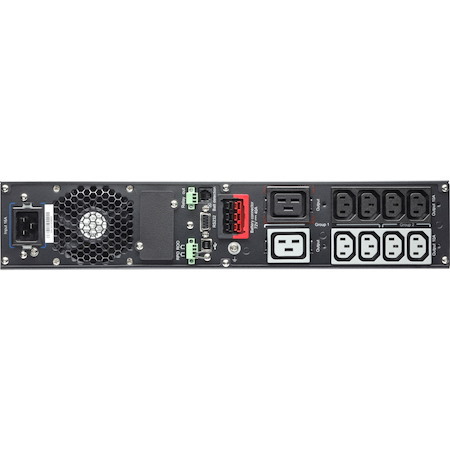

10 Outlets Protect Your Connected Components

Two C19 and eight C13 managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Series
    • 9PX
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 2 x IEC 60320 C19
    • 8 x IEC 60320 C13
    • Transfer Time
    • 0 ns
  • Power Description
    • Load Capacity (VA)
    • 2200 VA
    • Load Capacity (Watt)
    • 2000 W
    • Input Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
  • Physical Characteristics
    • Height
    • 3.4"
    • Width
    • 17.3"
    • Depth
    • 23.8"
    • Rack Height
    • 2U
    • Form Factor
    • Rack/Tower
    • Weight (Approximate)
    • 60.41 lb
  • Miscellaneous
    • Package Contents
      • 9PX2200GRT 2200VA Tower/Rack Mountable UPS
      • Safety Manual
      • User Manual
      • Output Cables (for G models)
      • Input Cables (for G models)
      • Cable Lockers (for G models)
      • 4-Post Rail Kit
      • Tower Pedestals
      • RS-232 Serial Cable
      • USB Cable
      • Intelligent Power Software Suite CD
    • Energy Star
    • Yes
    • Country of Origin
    • Philippines
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
