Eaton 9PX 48V Lithium-ion Extended Battery Module (EBM) used with 9PX1500RT-L, 9PX1500RTN-L, 9PX1500GRT-L UPS, 1U Rack/Tower

  • Part: 1428041
  • Model: 9PXEBM48RT-L
$1,646.00

Availability

In Stock

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

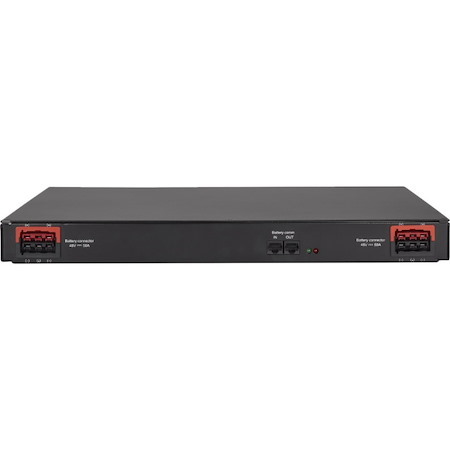

The 9PXEBM48RT-L offers extended battery runtime when used in conjunction with Eaton's 9PX1500RT-L, 9PX1500RTN-L and 9PX1500GRT-L 9PX UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 1U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 1U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack.

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Series
    • 9PX
    • Product Type
    • UPS Battery Pack

  • Technical Information
    • Battery Chemistry
    • Lithium Ion (Li-Ion)
    • Hot Swappable
    • Yes
    • Output Voltage
    • 48 V DC
  • Environmental Conditions
    • Minimum Operating Temperature
    • 32°F (0°C)
    • Maximum Operating Temperature
    • 104°F (40°C)
  • Physical Characteristics
    • Height
    • 1.7"
    • Width
    • 17.2"
    • Depth
    • 17.6"
    • Weight (Approximate)
    • 36.50 lb
  • Miscellaneous
    • Package Contents
      • 9PX Extended Battery Module (EBM)
      • External battery cable
      • Rack-mounting hardware
      • Stabilizer bracket
      • Quick Start Guide
    • Compatibility
    • Eaton UPS:

    • 9PX1500RT-L
    • 9PX1500RTN-L
    • 9PX1500GRT-L 9PX
    • Certifications & Standards
      • cTUVus
      • NOM (Mexico)
      • EN 62040-2
      • CE (Europe)
      • FCC Part 15 Class B (USA)
    • Country of Origin
    • Philippines
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
