- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS On-Line
- Product Type
- Double Conversion Online UPS

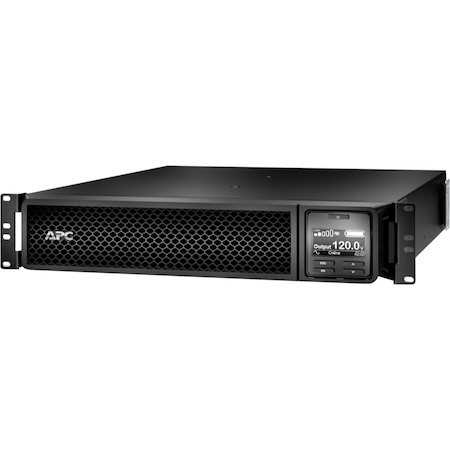

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery
- Technical Information
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-20P
- Receptacle Detail

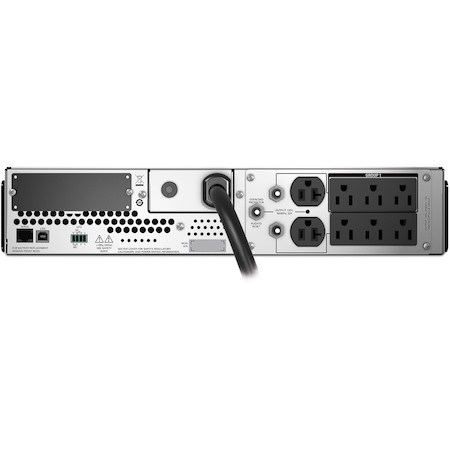

- 1 x NEMA L5-20R
- 6 x NEMA 5-20R
- Number of Battery & Surge Outlets
- 7
- Cord Length
- 10 ft
- Power Description
- Load Capacity (VA)
- 2200 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V
- Output Voltage
- 120 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 340 J
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SmartSlot
- Alarm
- Yes
- Controls/Indicators
- Status Indicators
Multi-function LCD status and control console
- Interfaces/Ports
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- DC System Voltage
- 72 V DC
- Battery Chemistry
- Lead Acid
- Battery Energy
- 0 J
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 3 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -4°F (-20°C) - 122°F (50°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 55 dB(A)
- Thermal Dissipation
- 156.79 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.3"
- Width
- 17"
- Depth
- 23"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Weight (Approximate)
- 55.01 lb
- Miscellaneous
- Package Contents
- Smart-UPS On-Line 2200VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Network Management Card
- Rack mounting hardware
- Rack Mounting brackets
- Rack Mounting support rails
- USB cable
- Warranty card
- Certifications & Standards
- ENERGY STAR V2.0 (USA)
- Software Included
- Powerchute Serial Edition
- Energy Star
- Yes
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2K2RXLNX145_ROHS_DECLARATION&p_FileName=SRT2K2RXLNX145KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124199&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124199&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
