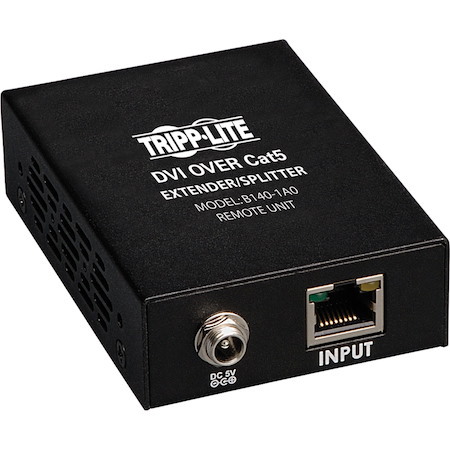

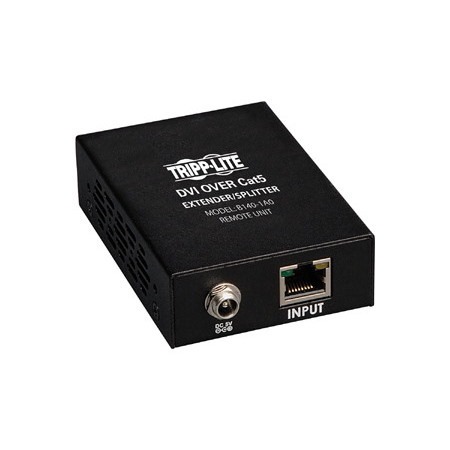

Tripp Lite by Eaton DVI over Cat5/6 Active Extender, Box-Style Remote Receiver for Video, DVI-I Single Link, Up to 200 ft. (60 m), TAA

  • Part: 1024409
  • Model: B140-1A0
$139.00

Availability

In Stock

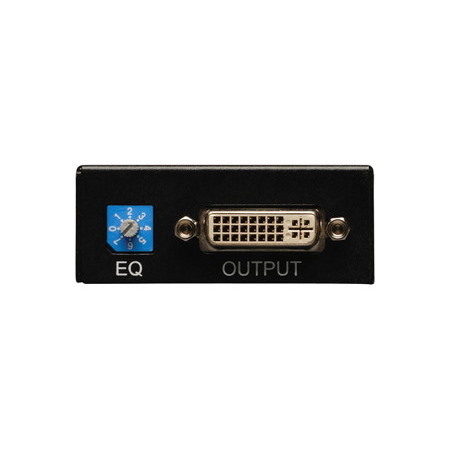

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Receiver
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 200 ft
  • Video
    • Graphics Modes
    • Full HD
    • Maximum Video Resolution
    • 1920 x 1080
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • DVI Out
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
    • Number of DVI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Physical Characteristics
    • Receiver Height
    • 1"
    • Receiver Width
    • 2.50"
    • Receiver Depth
    • 3.60"
  • Miscellaneous
    • Package Contents
      • B140-1A0 DVI over Cat5 Active Extender Remote Unit
      • Mounting Hardware
      • Screwdriver for adjustment of Equalization
      • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
      • Owner's Manual
    • Certifications & Standards
    • TAA
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
