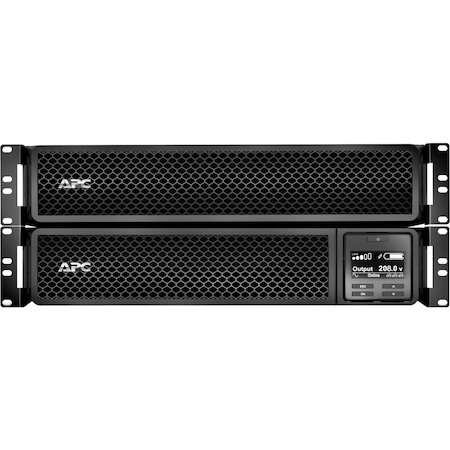

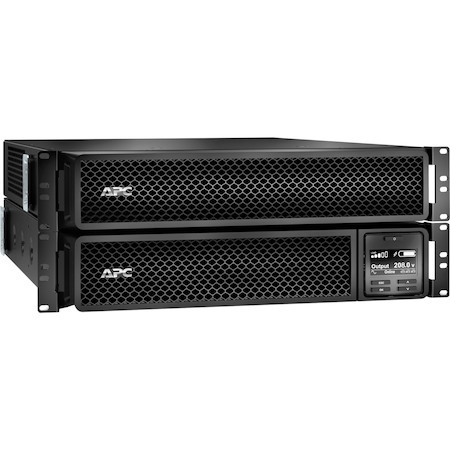

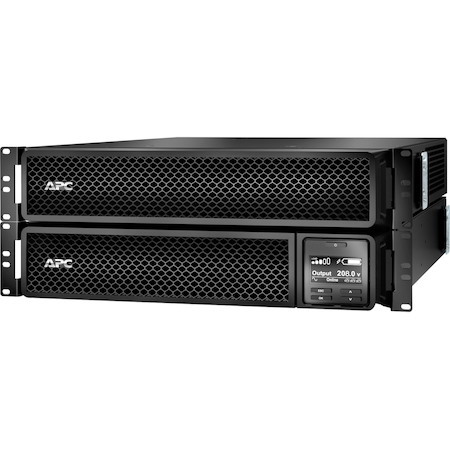

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 12x NEMA 5-20R and 2x NEMA L6-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS On-Line
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery
- Technical Information
- Plug/Connector Type
- NEMA L6-20P
- Receptacle Type
- NEMA L6-20P
- Receptacle Detail

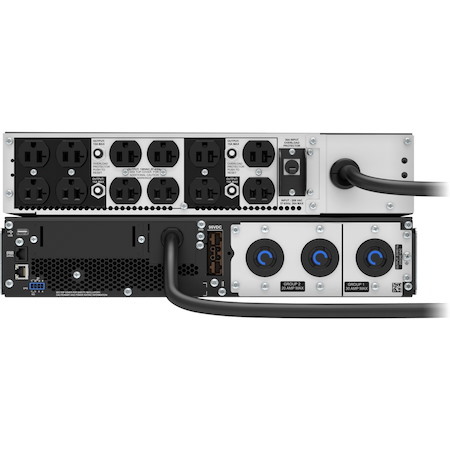

- 12 x NEMA 5-20R
- 2 x NEMA L6-20R
- Number of Battery & Surge Outlets
- 14
- Cord Length
- 10 ft
- Power Description
- Load Capacity (VA)
- 3000 VA
- Load Capacity (Watt)
- 2700 W
- Input Voltage
- 208 V
- Output Voltage
- 120 V AC
- 208 V AC
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 340 J
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4 Minute
- Typical Battery Recharge Time
- 3 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 6.7"
- Width
- 17"
- Depth
- 25"
- Rack Height
- 4U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Weight (Approximate)
- 164 lb
- Miscellaneous
- Package Contents
- Smart-UPS SRT 3000VA RM 208V to 120V 2U Step-Down Transformer
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- USB cable
- Warranty card
- Certifications & Standards
- ENERGY STAR V2.0 (USA)
- Software Included
- Powerchute Serial Edition
- Energy Star
- Yes
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT3000RMXLT-5KTF_ROHS_DECLARATION&p_FileName=SRT3000RMXLT-5KTFKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135472&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135472&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
- California Proposition 65 Warning
- "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
