- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Line
- SmartOnline
- Product Series
- EZ
- Product Type
- Double Conversion Online UPS

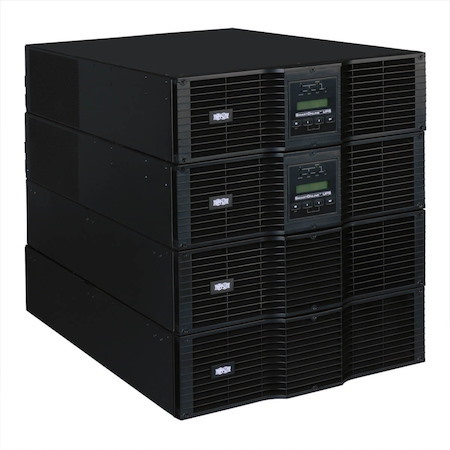

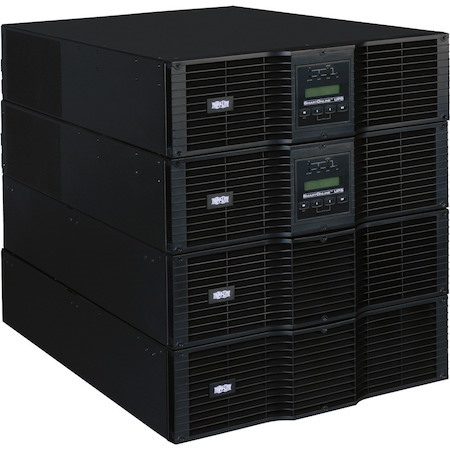

Tripp Lite SU16KRT 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- Hardwired
- Receptacle Type
- NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-30R
- Transfer Time
- 0 ns
- Overload Protection
- Yes
- Power Description
- Load Capacity (VA)
- 16 kVA
- Input Voltage
- 200 V AC
- 208 V AC
- 240 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Input Current
- 92 A
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Automatic
- Manual
- Emergency Power OFF
- Yes
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Modular Slots
- Communications Slot
- Battery Information
- Backup/Run Time (Full Load)
- 5.50 Minute
- Backup/Run Time (Half Load)
- 13.50 Minute
- Typical Battery Recharge Time
- 8 Hour
- Physical Characteristics
- Form Factor
- Rack/Tower
- Rack Height
- 12U
- Height
- 5.1"
- Width
- 17.5"
- Depth
- 26"
- Weight (Approximate)
- 43 lb
- Miscellaneous
- Package Contents
- SmartOnline EZ SU16KRT 16kVA Tower/Rack Mountable UPS
- 2 x Power Modules

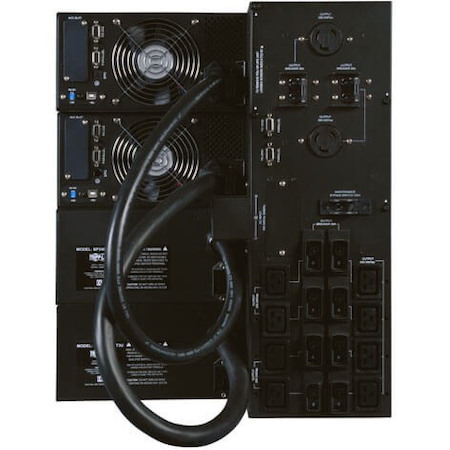

- L6-30R / C19 parallel PDU with Bypass Switch
- 2 x Battery Packs
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 x Sets of Adjustable 4 Post Rack Rails
- Additional Information
Output Receptacles: 8 x C19
- Software Included
- PowerAlert Software
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
