- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Line
- SmartOnline
- Product Series
- EZ
- Product Type
- Double Conversion Online UPS

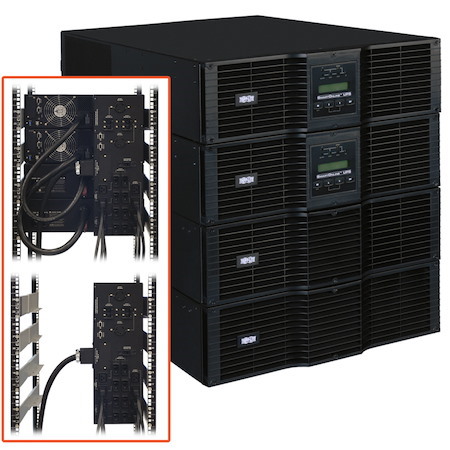

Tripp Lite SU20KRTG 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- Hardwired
- Receptacle Detail
- 8
- Transfer Time
- 0 ns
- Overload Protection
- Yes
- Power Description
- Load Capacity (VA)
- 20 kVA
- Input Voltage
- 220 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Input Current
- 112.20 A
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Automatic
- Manual
- Emergency Power OFF
- Yes
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Modular Slots
- Communications Slot
- Battery Information
- Backup/Run Time (Full Load)
- 4.30 Minute
- Backup/Run Time (Half Load)
- 12.50 Minute
- Typical Battery Recharge Time
- 8 Hour
- Physical Characteristics
- Form Factor
- Rack/Tower
- Rack Height
- 12U
- Height
- 5.1"
- Width
- 17.5"
- Depth
- 26"
- Weight (Approximate)
- 44.10 lb
- Miscellaneous
- Package Contents
- SmartOnline EZ SU20KRTG 20kVA Tower/Rack Mountable UPS
- 2 x UPS Power Modules
- 2 x Battery Packs
- C19 Parallel PDU with Bypass Switch
- 4 x Sets of Adjustable 4 Post Rack Rails
- PowerAlert Monitoring Software CD
- USB Cable
- Serial Cable
- EPO Cable
- Additional Information
Output Receptacles: 8 x C19
- Software Included
- PowerAlert Monitoring Software
- Country of Origin
- China
- Environmentally Friendly
- Yes
