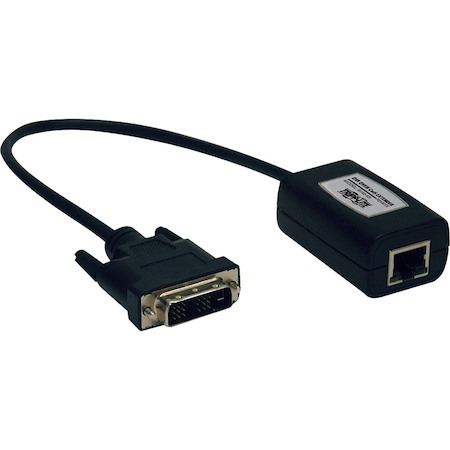

Tripp Lite by Eaton DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

  • Part: 1024242
  • Model: B140-1P0
$12.00

Availability

In Stock

The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1P0 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 100 ft..

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Receiver
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 100 ft
  • Video
    • Graphics Modes
    • Full HD
    • Maximum Video Resolution
    • 1920 x 1080
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • DVI Out
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
    • Number of DVI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Miscellaneous
    • Package Contents
      • B140-1P0 DVI Over Cat5 Passive Extender Remote Unit
      • Owner's Manual
    • Certifications & Standards
    • TAA
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
