- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Packaged Quantity
- 1 / Pallet
- Product Type
- Double Conversion Online UPS

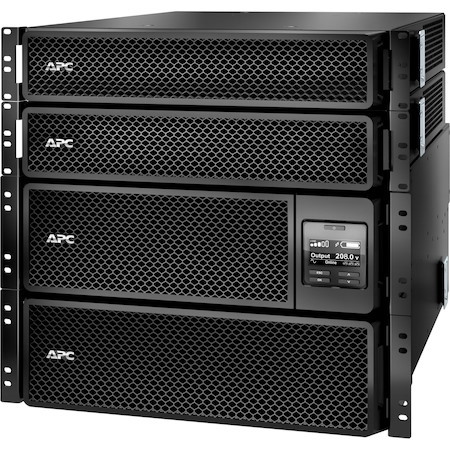

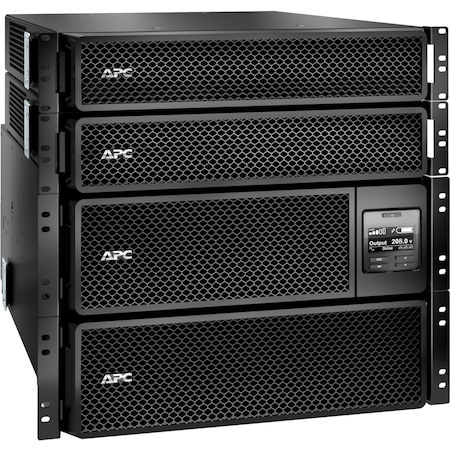

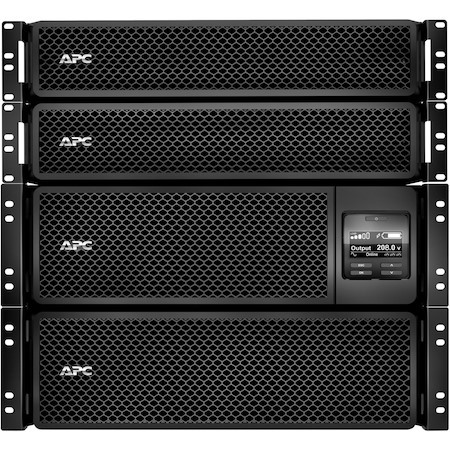

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 10U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 24x NEMA 5-20R and 4x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery
- Technical Information

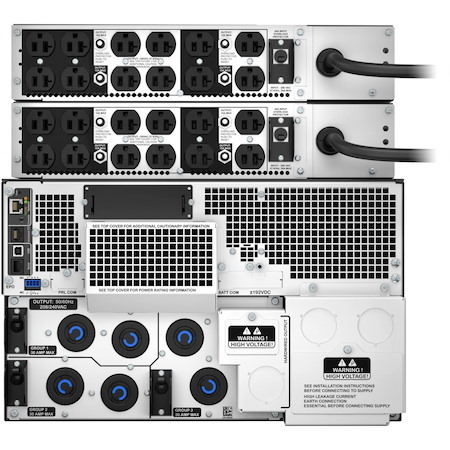

- Receptacle Type
- NEMA 5-20R
- NEMA L6-30R
- Receptacle Detail
- 24 x NEMA 5-20R
- 4 x NEMA L6-30R
- Number of Battery & Surge Outlets
- 28
- Power Description
- Load Capacity (VA)
- 10000 VA
- Input Voltage
- 208 V AC
- Output Voltage
- 120 V AC
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 480 J
- Battery Information
- Battery Chemistry
- Lead Acid
- Typical Battery Recharge Time
- 1.50 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 10U
- Mounting Preference
- Lower
- Height
- 17.4"
- Width
- 17"
- Depth
- 28.1"
- Weight (Approximate)
- 436.01 lb
- Miscellaneous
- Package Contents
- Smart-UPS SRT 10kVA RM with two 208V to 120V 2U 5kVA Step-Down Transformers
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Temperature probe
- USB cable
- Warranty card
- Web/SNMP management card
- Certifications & Standards
- ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778
- Energy Star
- Yes
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KRMXLT-5KTF2_ROHS_DECLARATION&p_FileName=SRT10KRMXLT-5KTF2KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135457&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135457&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
- California Proposition 65 Warning
- "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
