- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- RT
- Product Type
- Double Conversion Online UPS

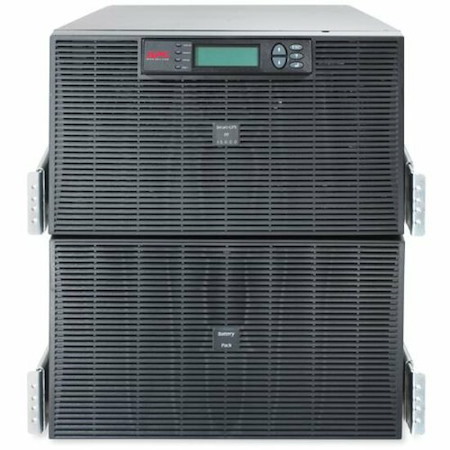

Smart-UPS RT 15kVA Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Smart-UPS RT 15kVA Rack Mountable UPS has the ability to be configured with matching battery packs to comply with aggressive runtime demands of business-critical systems.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- Hard Wire 3-wire
- Hard Wire 5-wire
- Receptacle Type
- Hard Wire 3-wire
- Hard Wire 5-wire
- IEC 320 EN 60320 C19
- IEC Jumper
- Receptacle Detail
- 1 x Hard Wire 3-wire
- 1 x Hard Wire 5-wire
- 8 x IEC 320 EN 60320 C19
- 2 x IEC Jumper
- Number of Battery & Surge Outlets
- 21
- Dataline Protection
- RJ-45
- Overload Protection
- Yes
- Power Description
- Load Capacity (VA)
- 15 kVA
- Input Voltage
- 220 V AC
- Output Voltage
- 230 V AC
- Waveform Type
- Sine Wave
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Static
- Internal
- External (Optional)
- Emergency Power OFF
- Yes
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- Modular Slots
- SmartSlot
- Battery Information
- Number of Batteries
- 4
- Battery Characteristics
- Maintenance-free/Sealed/Spill Proof
- Battery Chemistry
- Lead Acid
- Typical Battery Recharge Time
- 2.50 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 12U
- Height
- 21"
- Width
- 17"
- Depth
- 30.4"
- Miscellaneous
- Package Contents
- Smart-UPS RT 15kVA Rack Mountable UPS
- CD with software
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- User manual
- Web/SNMP management card
- Additional Information
- Multi-function LCD status and control console
- Audible and visible alarms : configurable delays
Output Voltage Note:
- Configurable for 220 : 230 or 240 nominal output voltage
- Environmentally Friendly
- Yes
