- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- Isolation Transformer
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Technical Information
- Power Rating
- 20 kVA
- Input Receptacle Type
- Hard Wire 3-wire (2PH + G)
- Hard Wire 3 wire (1PH+N+G)
- Hard Wire 4-wire (2PH+N+G)
- Output Receptacle Type
- Hard Wire 3-wire (2PH + G)
- Hard Wire 3-wire (H N + G)
- Hard Wire 4-wire (2PH+N+G)
- Output Receptacle Detail
- 1 x Hard Wire 3-wire (2PH + G)
- 1 x Hard Wire 3-wire (H N + G)
- 1 x Hard Wire 4-wire (2PH+N+G)
- Power Description
- Input Voltage
- 100 V
- 120 V
- 200 V
- 208 V
- 230 V
- 400 V
- Output Voltage
- 100 V
- 120 V
- 200 V AC
- 208 V AC
- 230 V AC
- Maximum Line Current
- 100 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Rack Height
- 4U
- Height
- 6.9"
- Width
- 17"
- Depth
- 29.8"
- Weight (Approximate)
- 260.54 lb
- Miscellaneous
- Package Contents

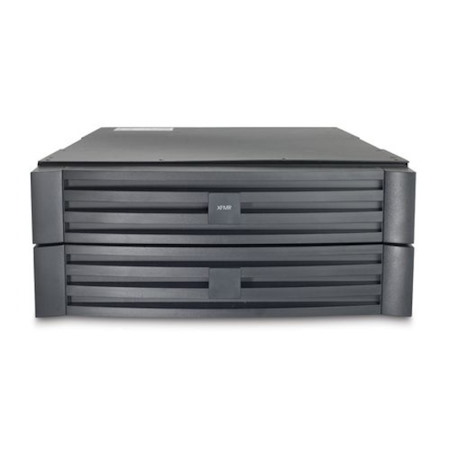

- 20kVA Isolation Rack-mountable Transformer
- Documentation CD
- Hardwire panel
- Installation guide
- Rack mounting brackets
- User manual
- Certifications & Standards
- CSA|UL Listed
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APTF20KW01_ROHS_DECLARATION&p_FileName=APTF20KW01KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759850&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759850&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
- REACH free of SVHC
- No
- Toxic Heavy Metal Free
- Yes
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
