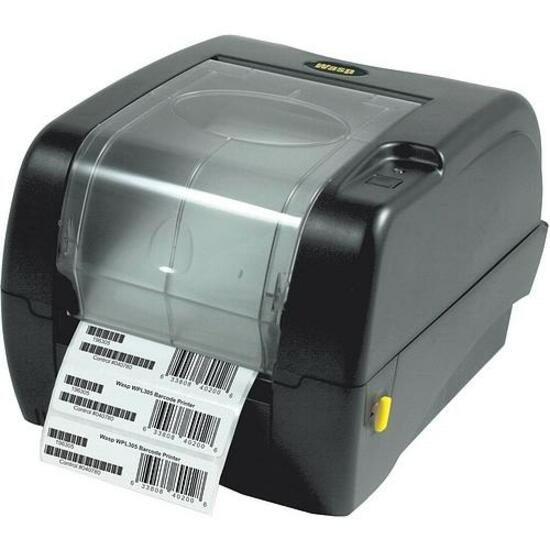

WPL305 is user-friendly, and reliable desktop barcode printer in its class. Its desktop design great for limited office and warehouse space. Easy installation & media loading will have you printing in minutes.
- General Information
- Manufacturer
- Wasp Barcode Technologies
- Manufacturer Website Address
- http://www.waspbarcode.com
- Brand Name
- Wasp
- Product Type
- Direct Thermal/Thermal Transfer Printer
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 5 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 4.25"
- Barcode Symbology Supported
- Code 93
- Code 128 UCC
- Code 128-A
- Code 128-B
- Code 128-C
- Code 11
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- MSI
- Plessey
- POSTNET
- PDF-417
- Maxi Code
- Data Matrix
- Micro PDF-417
- Code 39C
- Application/Usage
- Desktop
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 8 MB
- Memory Technology
- SDRAM
- Flash Memory
- 4 MB
- Interfaces/Ports
- Parallel Port
- Yes
- Serial Port
- Yes
- USB
- Yes
- Media Types & Handling
- Media Type
- Label
- Media Size
- Custom Size - 4.40"
- Media Sensor
- Reflective Media Sensor
- Maximum Roll Diameter
- 5"
- Maximum Label Width
- 4.40"
- Maximum Label Length
- 39"
- Label Core Size
- 3"
- Ribbon Core Size
- 1"
- Fonts & Emulation
- Language Emulation
- WPL
- EPL
- ZPL
- Software
- Operating System Supported
- Windows 8
- Windows 7
- Windows Vista
- Windows XP (SP3)
- Windows 2000
- Windows Server 2012
- Windows Server 2008
- Windows Server 2003
- Power Description
- Power Source
- AC Supply
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Height
- 7.4"
- Width
- 8.4"
- Depth
- 12.4"
- Weight (Approximate)
- 6.61 lb
- Miscellaneous
- Additional Information
- Compact Design
- Easy Media Supplies loading
- One Indicator LED (Two Color)
- WPL, ZPL emulation & EPL emulation
- Font Rotations: 0, 90, 180, 270 degrees
Sensors:
- Label Gap
- Black Line
- Head Open
- Reflective (position adjustable)
- Platform Supported
- PC
- Certifications & Standards
- CE
- FCC
- TUV
- UL
- Country of Origin
- Taiwan
