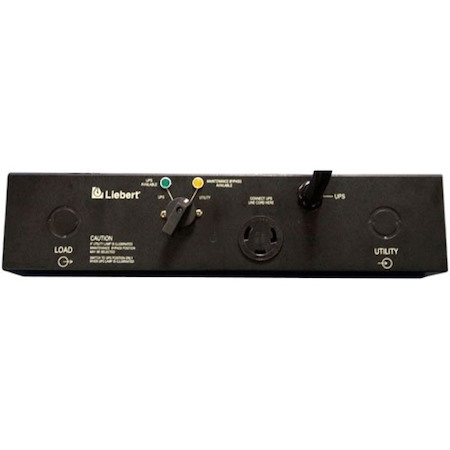

Liebert MicroPOD MBS MP2-115HW 2U Tower/Rack Mountable 12A 15 A

  • Part: 1270945
  • Model: MP2-115HW
$342.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Vertiv
    • Manufacturer Website Address
    • http://www.vertiv.com/
    • Brand Name
    • Liebert
    • Product Type
    • Bypass Switch

The MicroPOD allows you to manually transfer your connected equipment to utility power via a maintenance bypass switch, permitting scheduled maintenance or UPS replacement without power disruption. Transferring back to UPS power is just as easy just turn the switch to the indicated position and your load is protected by the UPS.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Plug/Connector Type
    • Hardwired
    • NEMA 5-15P
    • Receptacles
    • Hardwired
    • NEMA 5-15R
    • Protection Type
    • Over Current
    • Surge
  • Power Description
    • Input Voltage
    • 110 V AC
    • Output Voltage
    • 120 V AC
    • 208 V AC
    • Current
    • 12 A
    • 15 A
  • Physical Characteristics
    • Form Factor
    • Tower/Rack-mountable
    • Rack Height
    • 2U
    • Height
    • 3.5"
    • Width
    • 17"
    • Depth
    • 3.5"
    • Weight (Approximate)
    • 11.90 lb
  • Miscellaneous
    • Additional Information
      • Provides utility power to your attached equipment when switched to maintenance bypass mode
      • Allows UPS maintenance or replacement of the UPS without discontinuing power to critical equipment
      • Easily installed the UPS and utility power are both connected to the MicroPOD with the supplied cords
      • Rotary switch with indicators make the unit simple to operate
      • AC Input =Terminal Blocks. Recommended wire 14 AWG; accepts 8 AWG max.
    • Compatibility
      • UPS
      • 700VA 1KVA 1.5KVA RT
    • Certifications & Standards
      • UL 1778
      • c-UL
      • ISTA Procedure 1A
