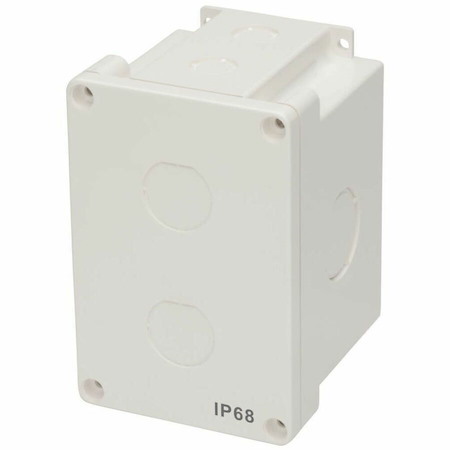

Eaton Tripp Lite Series Waterproof Electrical Junction Box - Surface Mount, Industrial, Single Gang, IP68, TAA, 2 Cutouts

  • Part: 1257713
  • Model: N206-SB01-IND
$11.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Mounting Box

Waterproof Electrical Junction Box Recommended for Outdoor or Harsh Outdoor Environments

This surface-mount Cat5e junction box is ideal for connecting Cat5e/6 networks or USB 3.0 installations in outdoor applications and other areas where protection from harsh elements is essential. It is constructed with a high-impact polycarbonate (UL94V-0) housing and flexible rubber gaskets. Two knockout holes are suitable for standard M16 cable glands (included) or M32 conduit glands. Wall-mounting hardware is included.

Designed for Use with Tripp Lite Industrial-Grade Cables and Couplers

The industrial junction box with two bulkhead cutouts works with Tripp Lite's N206-Series industrial Cat5e/6 patch cables and N206-BC01-IND bulkhead coupler or N206-KJ01-IND keystone jack, as well as the U325-Series industrial USB 3.0 cables and U325-000-IND bulkhead coupler (all sold separately).

IP68 Rating Denotes Resistance to Dust and Water

The IP68 rating means the junction box is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance, making the box ideal for basement applications.

TAA-Compliant for GSA Schedule Purchases

The N206-SB01-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Lifetime Warranty

The N206-SB01-IND is backed by a lifetime warranty, ensuring reliability and performance.

Typical Applications

  • Connect Gigabit Ethernet networks, security cameras or digital signage in factories, warehouses, mills and other industrial environments
  • Provide Cat6 or USB 3.0 connectivity in outdoor environments susceptible to rain, such as a stadium or outdoor arena
  • Set up outdoor digital signage at malls, theaters and bus stops
  • Protect IT infrastructure in basements and other areas susceptible to flooding

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • Lifetime

  • Physical Characteristics
    • Color Family
    • White
    • Product Color
    • White
    • Product Material
    • Polycarbonate
    • Height
    • 33.3"
    • Width
    • 17.5"
  • Miscellaneous
    • Package Contents
      • N206-SB01-IND Waterproof Electrical Junction Box
      • 8 x Screws
      • 4 x Screw caps
      • 2 x M16 cable glands
      • Quick Start Guide
    • Application/Usage
    • Surface
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
