Eaton Tripp Lite Series USB-C to HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA

  • Part: 1449259
  • Model: B127A-1A1-BCBH
$217.00

Availability

In Stock

USB-C to HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft or More
The B127A-1A1-BCBH extends 4K signals from a USB-C source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

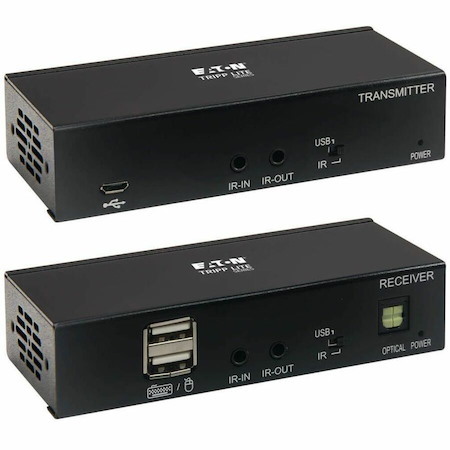

Dip Switch Extends Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127A-1A1-BCBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

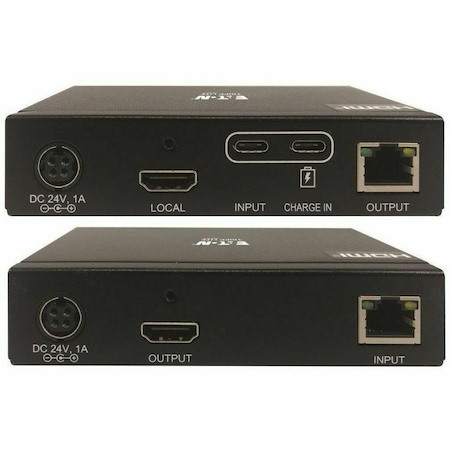

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place one unit where needed without worrying about finding a nearby AC outlet.

PD 3.0 Charging Port Powers the Source Device to Maintain a Clear Signal
The USB-C Power Delivery port provides up to 20V 5A (90W, with 10W dedicated to the unit's power reserve) for powering the connected source device when using an E-Mark USB-C cable (such as Tripp Lite's U040-C13-C-5A). With a non-E-Mark cable, the USB-C PD 3.0 port provides up to 20V 3A (50W, with 10W to the power reserve). The other USB-C port connects the transmitter to the source.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required.

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • KVM Extender
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Computers Supported
    • 2
    • Maximum Operating Distance
    • 230 ft
    • Device Type
    • KVM Extender
  • Video
    • Graphic Mode
    • 4K
    • Maximum Video Resolution
    • 3840 x 2160
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • USB
    • Yes
    • HDMI
    • Yes
    • Number of HDMI Ports
    • 2
    • Number of Network (RJ-45) Ports
    • 2
    • Number of USB Ports
    • 5
  • Power Description
    • Input Voltage
    • 120 V AC
    • 240 V AC
    • Input Voltage Range
    • 100V AC to 240V AC
    • Frequency
    • 50 Hz
    • 60 Hz
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Wall Mountable
    • Transmitter Height
    • 1.06"
    • Transmitter Width
    • 4.53"
    • Transmitter Depth
    • 2.46"
    • Receiver Height
    • 1.06"
    • Receiver Width
    • 4.53"
    • Receiver Depth
    • 2.46"
    • Transmitter Weight (Approximate)
    • 1 lb
    • Receiver Weight (Approximate)
    • 1 lb
  • Miscellaneous
    • Package Contents
      • 1 x Transmitter
      • 1 x Receiver
      • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
      • 4 x International plug adapters (North America, Europe, U.K. and Australia)
      • Mounting Hardware
      • Owner's Manual
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
