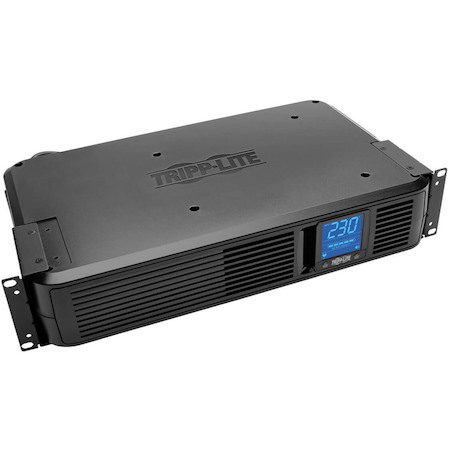

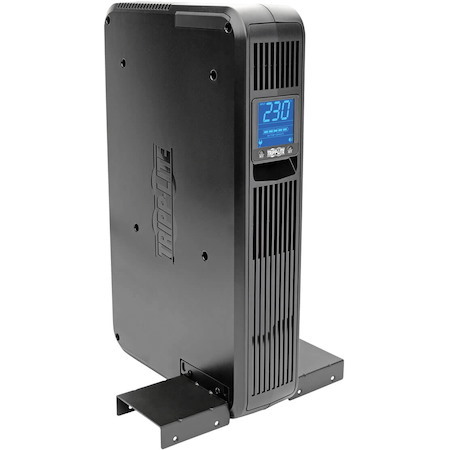

Tripp Lite by Eaton 1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower

  • Part: 1018480
  • Model: SMX1500LCD
$455.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • SmartPro
    • Product Type
    • Line-interactive UPS

The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

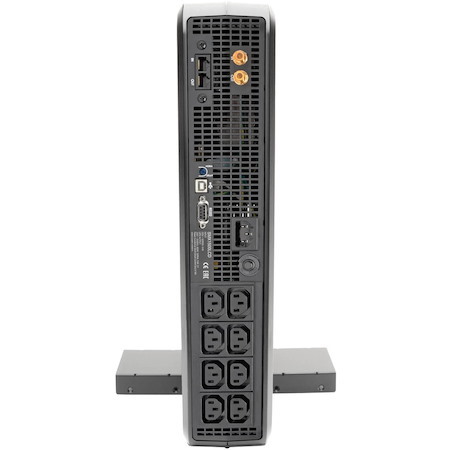

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Plug/Connector Type
    • IEC 320 EN 60320 C14
    • Receptacle Type
    • IEC 60320 C13
    • Receptacle Detail
    • 8 x IEC 60320 C13
    • Dataline Protection
    • RJ-11
    • Transfer Time
    • 4 ms
  • Power Description
    • Load Capacity (VA)
    • 1500 VA
    • Load Capacity (Watt)
    • 900 W
    • Input Voltage
    • 220 V AC
    • Output Voltage
    • 230 V AC
  • Interfaces/Ports
    • Serial Port
    • Yes
    • USB
    • Yes
  • Battery Information
    • Battery Chemistry
    • Lead Acid
    • Backup/Run Time (Full Load)
    • 4.50 Minute
    • Backup/Run Time (Half Load)
    • 13 Minute
    • Typical Battery Recharge Time
    • 8 Hour
  • Physical Characteristics
    • Height
    • 3.5"
    • Width
    • 17.3"
    • Depth
    • 10.5"
    • Rack Height
    • 2U
    • Form Factor
    • Tower
    • Rack-mountable
    • Weight (Approximate)
    • 33.40 lb
  • Miscellaneous
    • Package Contents
      • SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
      • SMX1500LCD Digital UPS System
      • USB cable, phone (RJ11) cable and coax cable
      • 2 C13-to-C14 jumper cables
      • 2 tower/rackmount brackets
      • Owner's manual with warranty information
    • Additional Information
      • Appearance: Attractive black color scheme

      Output voltage regulation:

      • Battery Mode: PWM sine wave 230V +/-5%

      Output frequency regulation:

      • Line Mode: Passes line frequency of 50/60Hz +/-10%
      • Battery Mode: Inverter output regulated to 50/60Hz +/-0.5Hz
    • Certifications & Standards
      • CE /IEC 62040-1-1
      • 62040-1-2
      • FCC Class A (Emissions)
      • RoHS Compliant
      • GOST
      • SASO
    • Software Included
    • PowerAlert Software
    • Country of Origin
    • China
