Eaton Tripp Lite Series 1.8kW 120V Single-Phase Basic PDU - 13 NEMA 5-15R Outlets, 5-15P Input, 6 ft. Cord, 1U Rack-Mount

  • Part: 1421968
  • Model: PDU121506
$87.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • PDU

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

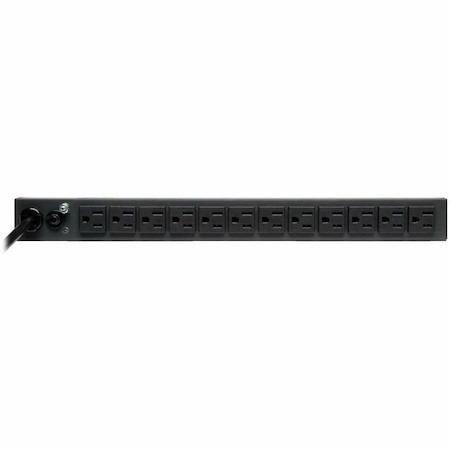

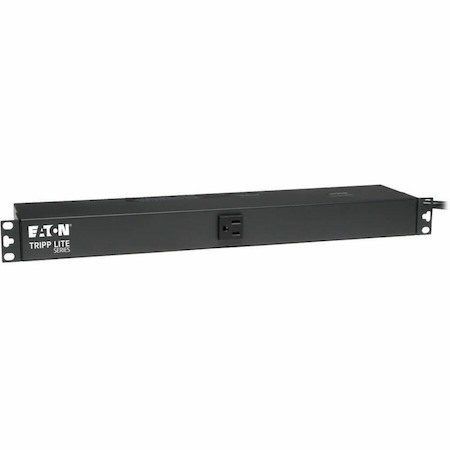

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The reversible all-metal housing comes with mounting brackets for installation in 1U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU121506 for vertical 0U rack-mounting as well.

  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Single Phase
    • Plug/Connector Type
    • NEMA 5-15P
    • Receptacle Type
    • NEMA 5-15R
    • Receptacle Detail
    • 13 x NEMA 5-15R
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 120 V AC
    • Output Voltage
    • 100 V AC
    • 120 V AC
    • 127 V AC
    • Power Rating (Watt)
    • 1900 W
    • Input Current
    • 15 A
    • Circuit Breaker
    • Yes
  • Physical Characteristics
    • Mounting Orientation
    • Horizontal
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 1U
    • Cord Length
    • 6 ft
    • Height
    • 1.8"
    • Width
    • 17.5"
    • Depth
    • 4.5"
    • Weight (Approximate)
    • 4.90 lb
  • Miscellaneous
    • Package Contents
      • PDU121506 13-Outlets PDU
      • Rack-mounting hardware
      • Owner's Manual
    • Additional Information
    • ENVIRONMENTAL

      • Storage Temperature Range -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity 5 to 95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000

      SPECIAL FEATURES:

      • TVSS Grounding Back panel grounding lug

      USER INTERFACE, ALERTS & CONTROLS:

      • Switches No power switch
    • Certifications & Standards
    • STANDARDS & COMPLIANCE:

      • Certifications Tested to UL, CSA
      • Certification Details Series Number (s) AGIP120V6IPRM; Safety Standards (Canada) CAN/CSA-C22.2 No.308-14; Safety Standards (U.S.) UL1363:2018 (5th Ed); RETIE
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
