Eaton Tripp Lite Series 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA

  • Part: 1098897
  • Model: PDU3XMV6G32
$843.00

Availability

In Stock

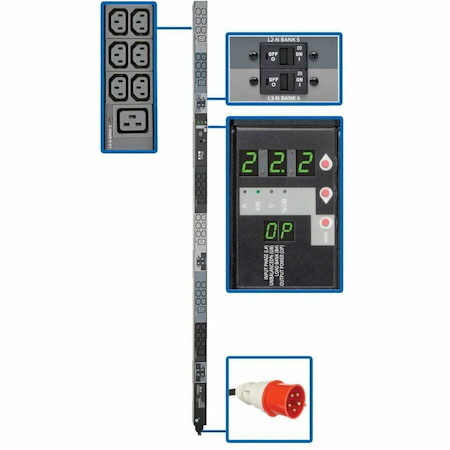

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • Metered
    • Product Type
    • PDU
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Plug/Connector Type
    • IEC 60309 32A Red 3P+N+E
    • Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 6 x IEC 60320 C19
    • 36 x IEC 60320 C13
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage Range
    • 380 V AC - 400 V AC
    • Output Voltage
    • 200 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • Power Rating (Watt)
    • 23 kW
    • Input Current
    • 32 A
    • Circuit Breaker
    • Yes
  • Physical Characteristics
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Height
    • 70"
    • Width
    • 2.2"
    • Depth
    • 2.5"
    • Weight (Approximate)
    • 14.29 lb
  • Miscellaneous
    • Package Contents
      • Metered PDU3XMV6G32 42 Outlets PDU
      • Cord Retention Sleeves (36 C14, 6 C19)
      • Spare Installation Buttons (2 9mm / 4 6mm)
      • Rack Mounting Brackets
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
