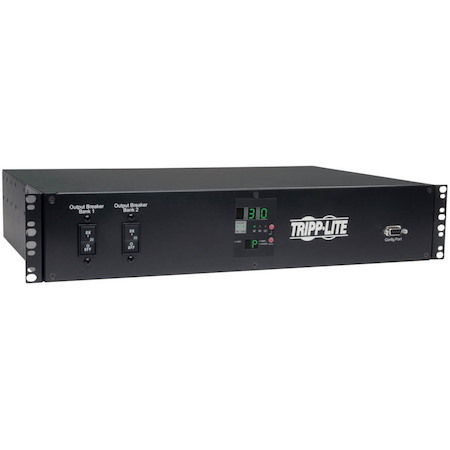

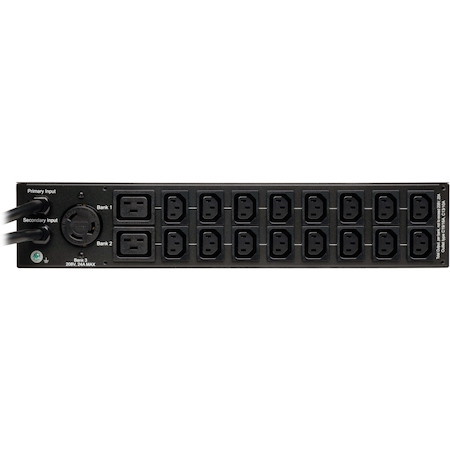

Eaton Tripp Lite Series 5.8kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V L6-30P Inputs, 16-C13 2-C19 & 1 L6-30R Outlet, 2U, TAA

  • Part: 1033882
  • Model: PDUMH30HVAT
$726.00

Availability

Out of Stock
  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Series
    • Metered
    • Product Type
    • PDU

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Plug/Connector Type
    • NEMA L6-30P
    • Plug/Connector Detail
    • 2 x NEMA L6-30P
    • Receptacle Type
    • NEMA L6-30R
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 1 x NEMA L6-30R
    • 2 x IEC 60320 C19
    • 16 x IEC 60320 C13
  • Power Description
    • Input Voltage
    • 230 V AC
    • Input Voltage Range
    • 208 V AC - 240 V AC
    • Output Voltage
    • 208 V AC
    • 240 V AC
  • Physical Characteristics
    • Mounting Orientation
    • Horizontal
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 2U
    • Number of Cord/Cable
    • 2
    • Height
    • 3.5"
    • Width
    • 17.5"
    • Depth
    • 12.5"
    • Weight (Approximate)
    • 13.80 lb
  • Miscellaneous
    • Package Contents
      • Metered PDUMH30HVAT 19-Outlets PDU
      • Rackmount Installation Brackets
      • Installable Plug-retention Shelves
      • Cable Ties
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
