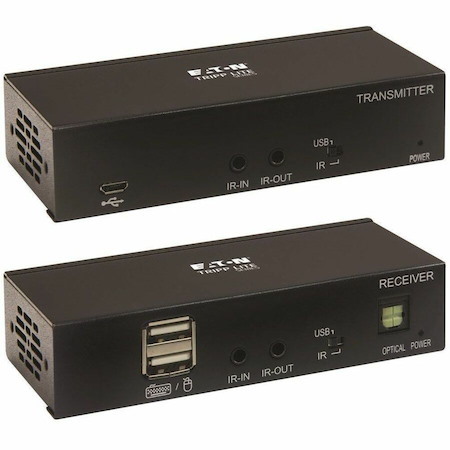

Eaton Tripp Lite Series HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA

  • Part: 1445684
  • Model: B127A-1A1-BHBH
$189.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Transmitter/Receiver

Features

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....and More
The B127A-1A1-BHBH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

Dip Switches Extend Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-1A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs on both unit will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BHBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

  • Connect a laptop for a video or PowerPoint presentation in an auditorium or lecture hall, where the source device changes frequently
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 230 ft
  • Video
    • Graphics Modes
    • 4K UHD
    • Maximum Video Resolution
    • 3840 x 2160
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
    • Number of USB Ports
    • 3
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Physical Characteristics
    • Transmitter Height
    • 2.70"
    • Transmitter Width
    • 11.50"
    • Transmitter Depth
    • 6.24"
    • Receiver Height
    • 2.70"
    • Receiver Width
    • 11.50"
    • Receiver Depth
    • 6.24"
    • Form Factor
    • Wall Mountable
    • Rack-mountable
    • Transmitter Weight (Approximate)
    • 15.87 oz
    • Receiver Weight (Approximate)
    • 15.87 oz
  • Miscellaneous
    • Package Contents
      • 1 x Transmitter
      • 1 x Receiver
      • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
      • 4 x International plug adapters (North America, Europe, U.K. and Australia)
      • IR-In Cable
      • IR-Out Cable
      • Mounting Hardware
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
