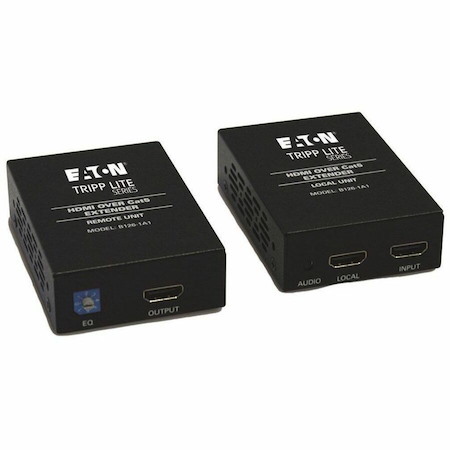

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

  • Part: 1024464
  • Model: B126-1A1
$203.00

Availability

In Stock
  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite series
    • Product Type
    • Video Extender Transmitter/Receiver

The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 2
    • Number of Output Devices Supported
    • 2
    • Maximum Operating Distance
    • 150 ft
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 2
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Rack-mountable
    • Wall Mountable
  • Miscellaneous
    • Package Contents
      • B126-1A1 Video Extender/Console
      • Screwdriver for Adjustment of Equalization
      • 2 x Mounting Hardware
      • 2 x External Power Supply
      • Owner's manual
    • Certifications & Standards
      • HDCP
      • TAA
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
