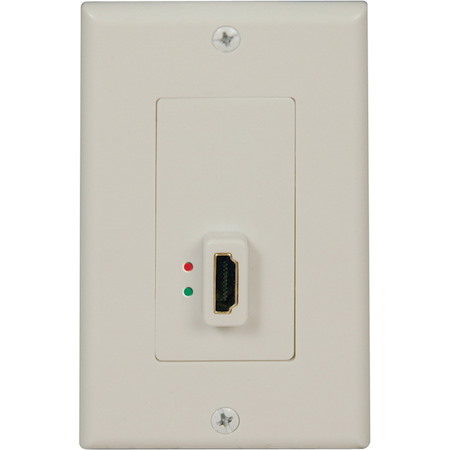

Tripp Lite by Eaton HDMI Display-Side Wallplate with Active Signal Booster, White (F/F)

  • Part: 1008990
  • Model: P166-001-A
$32.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Faceplate

Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 1080p, and a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.

  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Total Number of Sockets
    • 2
    • Mount Type
    • Wall Mount
    • Features
      • Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source
      • When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
      • 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
      • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
  • Interfaces/Ports
    • Number of HDMI Ports
    • 2
  • Physical Characteristics
    • Color Family
    • White
    • Product Color
    • White
  • Miscellaneous
    • Package Contents
      • HDMI Display-side Wallplate
      • Signal Booster
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
