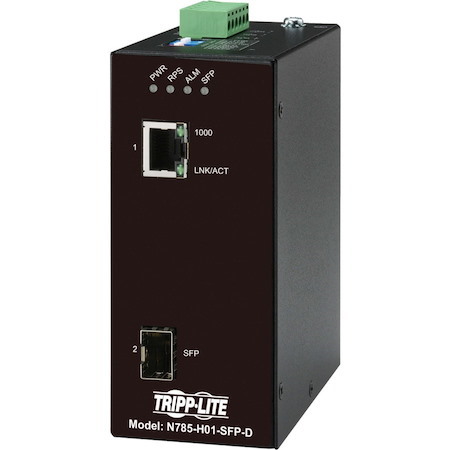

Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -10° to 60°C, DC Power, TAA

  • Part: 1669393
  • Model: N785-H01-SFP-D
$193.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Transceiver/Media Converter

Features | Customize a Network Connection Extension over Fiber Optic Cable
This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Line Loop Back
Determine the health of your network connection via the Line Loop Back (LLB) function, which ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.

Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.

TAA-Compliant for GSA Schedule Purchases
The N785-H01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Interfaces/Ports
    • Total Number of Ports
    • 1
    • Network (RJ-45)
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Optical Fiber
    • Fiber Mode Supported
    • Multi-mode
    • Single-mode
  • I/O Expansions
    • Total Number of Expansion Slots
    • 1.0
    • Expansion Slot Type
    • SFP (mini-GBIC)
    • Number of SFP Slots
    • 1
  • Network & Communication
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 10/100/1000Base-T
    • 100/1000Base-X
  • Power Description
    • Power Source
    • DC
    • Power Consumption
    • 5.50 W
    • Plug/Connector Type
    • Terminal Block
  • Physical Characteristics
    • Form Factor
    • DIN Rail Mountable
    • Height
    • 2"
    • Width
    • 4.6"
    • Depth
    • 3.9"
    • Weight (Approximate)
    • 14.88 oz
  • Miscellaneous
    • Package Contents
      • N785-H01-SFP-D Transceiver/Media Converter
      • SFP Connector Cap
      • RJ45 Connector Cap
      • Terminal Block (20-57VDC)
      • DIN Rail Kit
      • Quick Start Guide
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
