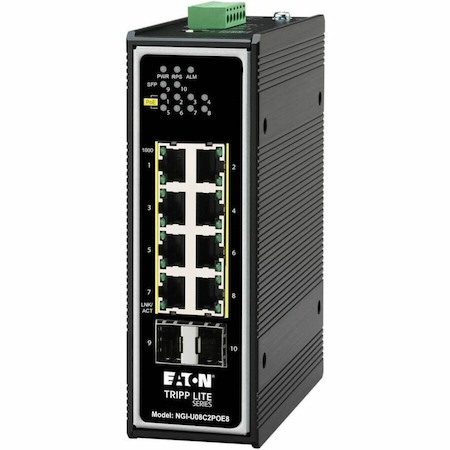

Eaton Tripp Lite Series 8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, -40° to 75°C, DIN Mount, TAA

  • Part: 1595088
  • Model: NGI-U08C2POE8
$674.00

Availability

In Stock

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features eight PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U08C2POE8 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W at 24VDC or 240W at 48VDC.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2POE8 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2POE8 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. A DIP switch supports an alarm relay output in which you can connect an alarm light or buzzer.

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24-57VDC terminal block supplies power input.

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Ethernet Switch
  • Warranty
    • Limited Warranty
    • 3 Year

  • Interfaces/Ports
    • Total Number of Network Ports
    • 8
    • Uplink Port
    • Yes
    • Modular
    • Yes
    • Network (RJ-45)
    • Yes
    • Port/Expansion Slot Details
    • 8 x Gigabit Ethernet PoE+
    • 2 x Gigabit Ethernet Expansion Slot
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Twisted Pair
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 10/100/1000Base-T
    • 1000Base-X
  • I/O Expansions
    • Total Number of Expansion Slots
    • 2.0
    • Expansion Slot Type
    • SFP (mini-GBIC)
    • Number of SFP Slots
    • 2
  • Network & Communication
    • Layer Supported
    • 2
    • Networking Standards
    • IEEE 802.3at
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3x
    • IEEE 802.3z
    • IEEE 802.1p
    • IEEE 802.3af
    • IEEE 802.3az
  • Management & Protocols
    • Manageable
    • No
  • Power Description
    • PoE (RJ-45) Port
    • Yes
    • PoE Budget
    • 240 W
    • Power Consumption
    • 14 W
  • Physical Characteristics
    • Product Material
    • Aluminum
    • Form Factor
    • DIN Rail Mountable
    • Height
    • 6.3"
    • Width
    • 2"
    • Depth
    • 4.7"
    • Weight (Approximate)
    • 2.03 lb
  • Miscellaneous
    • Package Contents
      • NGI-U08C2POE8 Ethernet Switch
      • DIN Rail-mounting Clip (Pre-installed)
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
