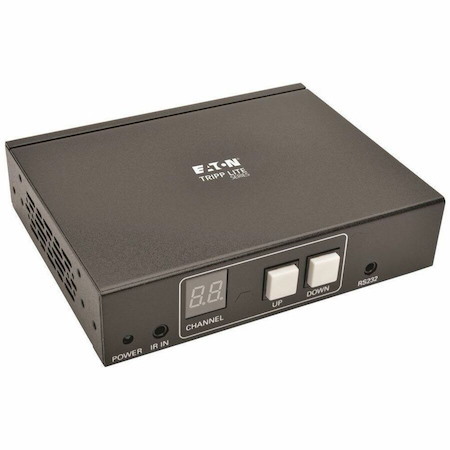

Eaton Tripp Lite Series DisplayPort over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

  • Part: 1152638
  • Model: B160-100-DPSI
$107.00

Availability

In Stock
  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Receiver

The B160-100-DPSI DisplayPort Audio/Video with RS-232 Serial and IR Control over IP Receiver extends and distributes DisplayPort audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 m).

The B160-100-DPSI is designed for managed network switches with IGMP, which allow login and remote management via switch interface. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.**

The B160-100-DPSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It works with any analog or digital source, including HDMI and VGA. It extends IR control signals that control a source, such as a Blu-ray™ player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.

Compatible with Tripp Lite's B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.


*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.

**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.

Features

Extends and Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling

  • Converts source video to IP-based signal transmitted to and distributed through network switch
  • Extends signal up to 328 ft. (100 m) from switch
  • Can also connect directly to transmitter up to 328 ft. away


Designed for Managed Network Switches with IGMP

  • Allows login and remote management via switch interface
  • Works with any analog or digital source, including HDMI and VGA
  • Connect up to 64 transmitters and 255 receivers in single managed switch installation


Enhanced Technical Features

  • Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
  • Uses H.264 video compression standard
  • Transmits on 20-60 kHz IR frequency
  • Extends IR control signals that control a source from a remote display
  • Supports RS-232 serial baud rates up to 57600 Bps
  • HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter (not compatible with VGA transmitter)


Plug and Play Functionality

  • No software or drivers required
  • Hardware included for mounting on wall, rack or pole
  • Compatible with B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters

TAA-Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 656.17 ft
  • Video
    • Graphics Modes
    • Full HD
    • Maximum Video Resolution
    • 1920 x 1080
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • DisplayPort
    • Yes
    • Serial Port
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6
  • Physical Characteristics
    • Form Factor
    • Wall Mountable
    • Rack-mountable
    • Pole-mountable
  • Miscellaneous
    • Package Contents
      • Receiver Unit
      • External Power Supply w/NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
      • Plug Adapters for U.S., U.K., Europe and Australia
      • IR-In Cable
      • 3.5 mm to DB9 Adapter Cable (M/M)
      • Mounting Hardware
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
