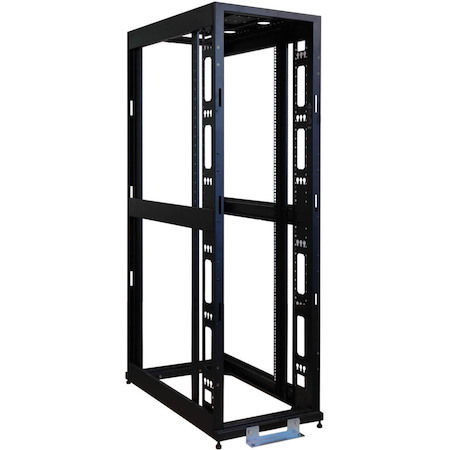

Eaton Tripp Lite Series SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors

  • Part: 1023762
  • Model: SR48UBEXPND
$1,397.00

Availability

In Stock

The SR48UBEXPND is 48U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR48UBEXPND houses 3000 lb of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR48UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR48UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR48UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • SmartRack
    • Product Type
    • Rack Frame
  • Warranty
    • Limited Warranty
    • 5 Year

  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Units Per Pallet
    • 1
    • Dynamic/Rolling Weight Capacity
    • 2250 lb
    • Static/Stationary Weight Capacity
    • 3000 lb
    • Height
    • 89"
    • Width
    • 23.6"
    • Depth
    • 43"
    • Weight (Approximate)
    • 213.85 lb
    • Rack Height
    • 48U
    • Rack Width
    • 19"
  • Miscellaneous
    • Package Contents
      • 48U 4-Post SmartRack Premium Open Frame Rack
      • Mounting Hardware
      • 50 x M6 Screws
      • 50 x M6 Cage Nuts
      • Stabilizing Bracket
      • 50 x M6 Washers
      • Owner's Manual
    • Additional Information
      • Front and back door frames
      • Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
      • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
      • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
      • Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
      • Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
      • Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
      • Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
      • Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
      • Open bottom for cable access.
      • 4 Interior vertical posts with unthreaded square hole openings
      • Preinstalled casters and leveling feet

      Approvals:

      • EIA-310-E
      • IEC 60297-3-100
      • DIN 41494
      • UL 60950
    • Assembly Required
    • No
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
