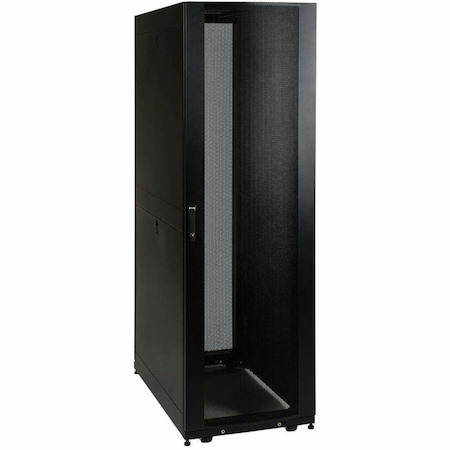

Eaton Tripp Lite Series 45U SmartRack Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging

  • Part: 1046936
  • Model: SR45UBSP1
$1,894.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • SmartRack
    • Product Type
    • Rack Cabinet

45U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR45UBSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.

The SR45UBSP1 houses 3000lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBUSP1 provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBSP1 meets all requirements toward PCI DSS compliance.

The top panel of the SR45UBSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR45UBSP1 is open-bottom.

All components of the SR45UBSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

The SR45UBSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.

  • Warranty
    • Limited Warranty
    • 5 Year

  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Units Per Pallet
    • 1
    • Dynamic/Rolling Weight Capacity
    • 2250 lb
    • Static/Stationary Weight Capacity
    • 3000 lb
    • Height
    • 83.8"
    • Width
    • 23.6"
    • Depth
    • 43"
    • Weight (Approximate)
    • 306.44 lb
    • Rack Height
    • 45U
    • Rack Width
    • 19"
  • Miscellaneous
    • Package Contents
      • SmartRack SR45UBSP1 Rack Cabinet
      • Owner's Manual
      • 50 x M6 Screws
      • 50 x M6 Washers
      • 50 x M6 Cage Nuts
      • 4 x Side Panels
      • 4 x Side Panel Locks
      • 2 x Door and Side Panel Keys
      • Stabilizing Bracket
      • Mounting Hardware
    • Additional Information
      • EIA-310-E Certification
      • UL60950 Approval
      • Front and back rear door frames
      • This special version of Tripp Lite's SR45UB SmartRack Enclosure ships mounted on a "shock pallet" that features additional reinforcement and shock-absorbing material for safe loading and re-shipping
      • Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration
      • Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters. (casters are removable)
      • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements
      • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure)
      • Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
      • Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements
      • Maximum usable internal depth of 37 inches/94 cm (front to rear rail)
      • Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 29.5" to match standard data center floor tiles
      • Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
      • Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires
      • Open bottom for cable access
      • Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
      • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
    • Assembly Required
    • No
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
