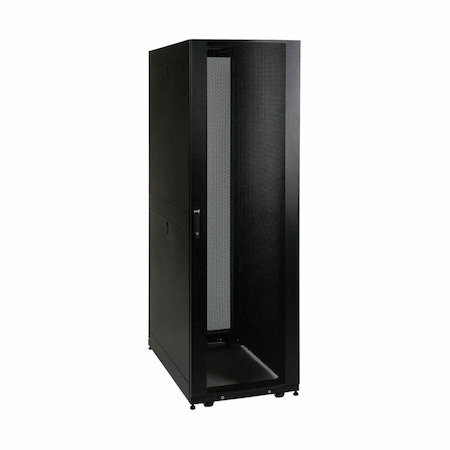

Eaton Tripp Lite Series 45U SmartRack Shallow-Depth Rack Enclosure Cabinet with doors & side panels

  • Part: 1046935
  • Model: SR45UBSD
$1,495.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • SmartRack
    • Product Type
    • Rack Cabinet

The SR45UBSD features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The shallow depth of the SR45UBSD is an ideal cabinet for shallow-depth audio/video equipment, smaller equipment installs or areas with limited floor space. It houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support tool-less button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBSD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBSD meets all requirements toward PCI DSS compliance.

The top panel of the SR45UBSD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBSD is open-bottom.

All components of the SR45UBSD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

To simplify deployment, the SR45UBSD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 5 Year

  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Units Per Pallet
    • 1
    • Dynamic/Rolling Weight Capacity
    • 3000 lb
    • Static/Stationary Weight Capacity
    • 2250 lb
    • Height
    • 8.8"
    • Width
    • 23.6"
    • Depth
    • 32.5"
    • Weight (Approximate)
    • 231.49 lb
    • Rack Height
    • 45U
    • Rack Width
    • 19"
  • Miscellaneous
    • Package Contents
      • 45U SmartRack Shallow Depth Premium Enclosure (Includes Doors and Side Panels)
      • Mounting Hardware
      • 50 x M6 Cage Nuts
      • 50 x M6 Screws
      • 50 x M6 Washers
      • Stabilizing Bracket
      • 4 x Side Panels
      • 4 x Side Panel Locks
      • 2 x Door and Side Panel Keys
      • Owner's Manual
    • Additional Information
      • EIA-310-E Certification
      • UL60950 Approval
      • Front and back door frames
      • Shallow depth enclosure is perfect for shallow-depth audio/video equipment, smaller equipment installs or areas with limited floor space
      • Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters
      • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements
      • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure)
      • Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
      • Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements
      • Maximum usable internal depth of 27 inches/68 cm (front to rear rail)
      • Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles
      • Casters are pre-installed and support a rolling load capacity of 2250 lbs, allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable
      • Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
      • Compact design allows the enclosure to roll through standard height commercial doorways
      • Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires
      • Open bottom for cable access
      • Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
      • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
      • Preinstalled casters and leveling feet
      • Ideal for shallow depth A/V equipment or any venue with limited floorspace
      • 4 Interior vertical posts with unthreaded square hole openings
    • Assembly Required
    • No
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
