Eaton 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 18 C13, 2 C19 Outlets, C20 / L6-20P Inputs, 0U 900mm Height, TAA

  • Part: 1199153
  • Model: PDUMNV20HV2LX
$420.00

Availability

In Stock
  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • PDU

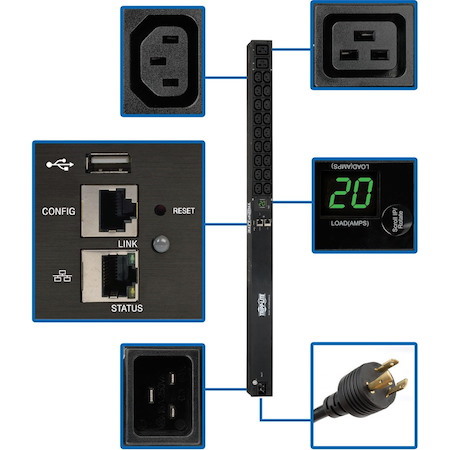

The PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

Recommended for your IT or industrial application, the 0U PDU features 20 outlets (18 C13 and 2 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • PDU Type
    • Monitored
    • Phase
    • Single Phase
    • Plug/Connector Type
    • NEMA L6-20P
    • IEC 60320 C20
    • Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 2 x IEC 60320 C19
    • 18 x IEC 60320 C13
  • Power Description
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 208 V AC
    • 230 V AC
    • Power Rating (Watt)
    • 3700 W
    • Input Current
    • 20 A
  • Management
    • Management
    • Protocols:
      • IPv4
      • IPv6
      • HTTP
      • HTTPS
      • SMTP
      • SNMPv1
      • SNMPv2
      • SNMPv3
      • telnet
      • SSH
      • FTP
      • DHCP
      • NTP
  • Physical Characteristics
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Height
    • 35.5"
    • Width
    • 2.2"
    • Depth
    • 1.9"
    • Weight (Approximate)
    • 6.50 lb
  • Miscellaneous
    • Package Contents
      • PDUMNV20HV2LX 20-Outlet PDU
      • Built-in LX Platform Interface
      • Detachable NEMA L6-20P to C19 Power Cord, 10 ft.
      • Configuration Cable
      • 20 x Plug-lock Inserts
      • Rack-mounting hardware
      • Mounting Bracket Accessory
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
