Eaton Tripp Lite Series SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure

  • Part: 1078272
  • Model: SRW12UHD
$591.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Line
    • SmartRack
    • Product Type
    • Rack Cabinet

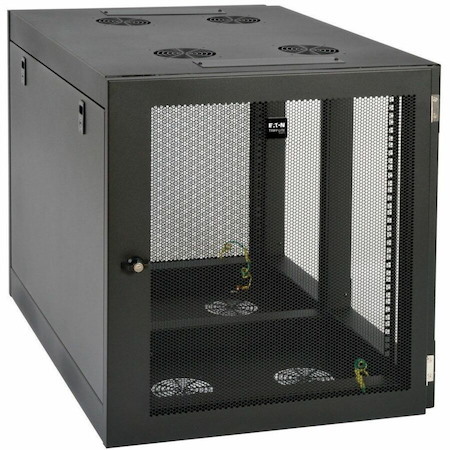

The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • Front Rail
    • Yes
    • Rear Rail
    • Yes
    • Application/Usage
    • Server
    • Features
    • Vented Top
    • Removable Door
    • Removable Side Panel
    • Adjustable Mounting Rails
  • Physical Characteristics
    • Form Factor
    • Wall Mountable
    • Color Family
    • Black
    • Product Color
    • Black
    • Static/Stationary Weight Capacity
    • 500 lb
    • Height
    • 26.5"
    • Width
    • 24.8"
    • Depth
    • 36.2"
    • Weight (Approximate)
    • 101.40 lb
    • Rack Height
    • 12U
    • Rack Width
    • 19"
    • Rack Depth
    • 32.50"
  • Miscellaneous
    • Package Contents
      • SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
      • 20 x M6 Cage Nuts
      • 20 x M6 Equipment Mounting Screws
      • 20 x M6 Washers
      • 20 x 12-24 Equipment Mounting Screws
      • 1 x Key Set
      • Owner's Manual
    • Certifications & Standards
    • EIA-310-E
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
