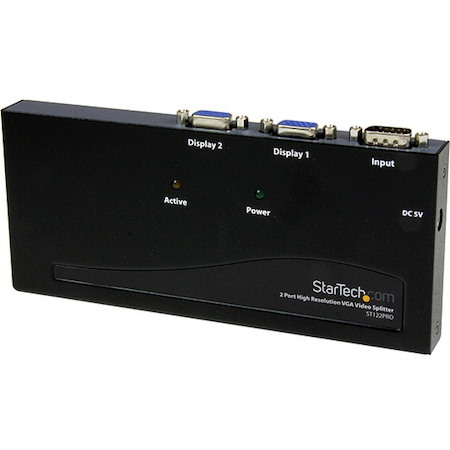

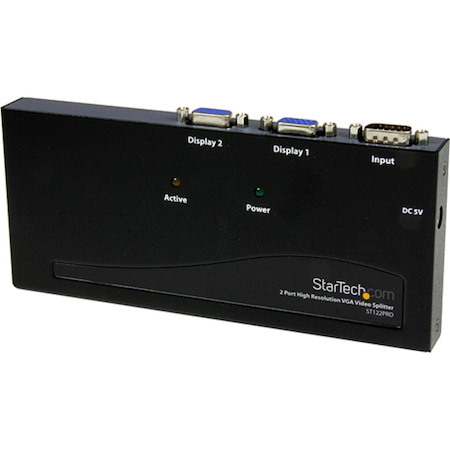

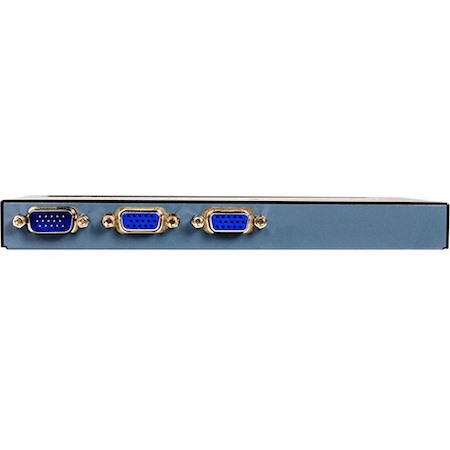

The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Male to Female VGA extension cable required (MXT101HQ)
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Signal Splitter
- Warranty
- Limited Warranty
- 2 Year
- Video
- Maximum Video Resolution
- 2048 x 1536
- Maximum Video Bandwidth
- 350 MHz
- Interfaces/Ports
- VGA In
- Yes
- VGA Out
- Yes
- Number of VGA Inputs
- 1
- Number of VGA Outputs
- 2
- Media & Performance
- Maximum Operating Distance
- 213.25 ft
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Product Color
- Black
- Product Material
- Steel
- Height
- 0.8"
- Width
- 3.1"
- Length
- 7.1"
- Weight (Approximate)
- 12.90 oz
- Miscellaneous
- Package Contents
- 2 Port High Resolution VGA Video Splitter - 350 MHz
- 4 x Rubber feet
- 1 x Power Adapter
- 1 x Instruction Manual
- Additional Information
- Allows one computer to provide simultaneous displays on 2 different monitors
- Daisy chainable for almost unlimited expansion
- Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
- Uses standard monitor extension cables (StarTech coaxial VGA cables recommended for best picture quality)
- DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)
- Enclosure: Metal
- Certifications & Standards
- FCC Part 15 Class A
- CE Mark
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
