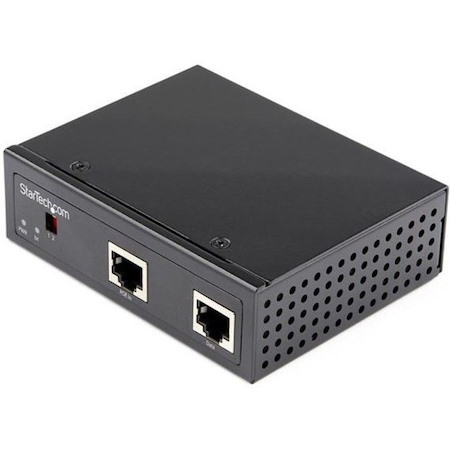

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.
Power Non-PoE DevicesPerfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
- Security (card swipe or proximity boxes)
- Environmental monitoring (temperature/moisture sensors)
- Telco (analog interface systems/conversion)
Straightforward Deployment

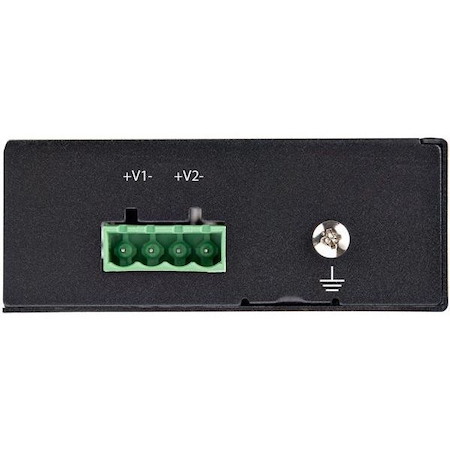

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).
The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- PoE Splitter
- Warranty
- Limited Warranty
- 2 Year
- Power Description
- Minimum Output Voltage
- 12 V DC
- Maximum Output Voltage
- 48 V DC
- Interfaces/Ports
- Input Ports
- 1 x PoE+
- Output Ports
- 1 x Ethernet
- 1 x Terminal Block
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Height
- 1.3"
- Width
- 3.2"
- Length
- 4.1"
- Weight (Approximate)
- 5.29 oz
- Miscellaneous
- Package Contents
- POESLT1G48V PoE Splitter
- Quick-Start Guide
- Hardware Mounting Kit
- Terminal Block
- Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3at
- IEEE 802.3af
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- EN 60068-2-6
- EN 60068-2-27
- EN 60068-2-32
- EN60950-1
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- Taiwan
