StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C

  • Part: 1415308
  • Model: POEINJ30W
$126.00

Availability

In Stock
  • General Information
    • Manufacturer
    • StarTech.com
    • Manufacturer Website Address
    • http://www.startech.com
    • Brand Name
    • StarTech.com
    • Product Type
    • PoE Injector

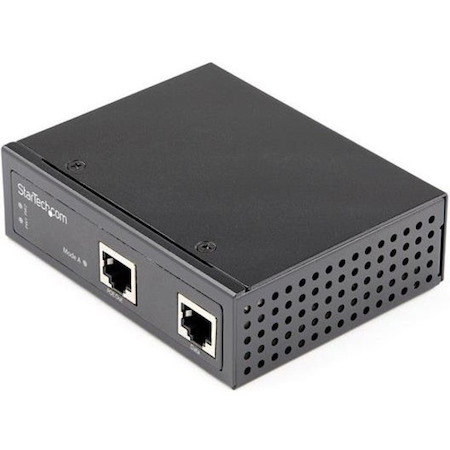

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

  • Cameras
  • Sensors
  • Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

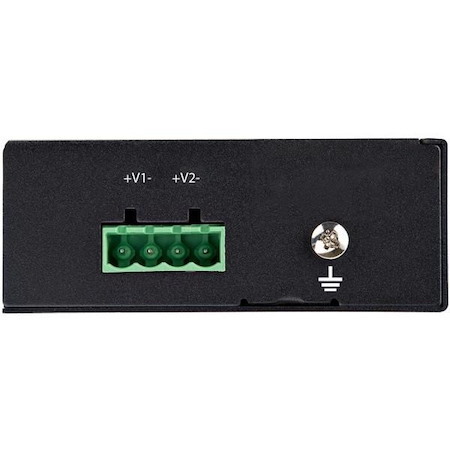

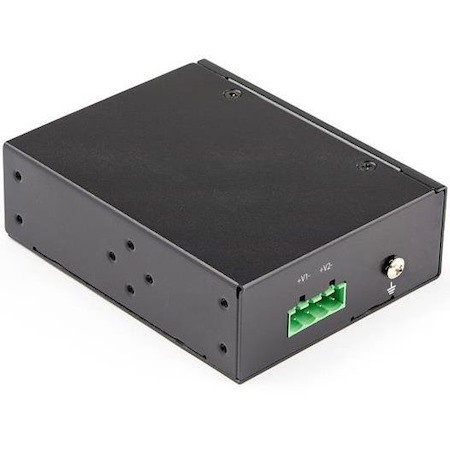

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 56 V DC
  • Interfaces/Ports
    • Input Ports
    • 1 x Fast Ethernet
    • Output Ports
    • 1 x PoE+
  • Physical Characteristics
    • Product Color
    • Black
    • Form Factor
    • DIN Rail/Wall Mountable
  • Miscellaneous
    • Package Contents
      • POEINJ30W PoE Injector
      • Mounting Hardware Kit
      • Quick-Start Guide
      • Terminal Block to Barrel Power Connector Adapter
      • Terminal Block
    • Certifications & Standards
      • IEEE 802.3
      • IEEE 802.3u
      • IEEE 802.3ab
      • IEEE 802.3af
      • IEEE 802.3at
      • IEC 61000-4-2
      • IEC 61000-4-4
      • IEC 61000-4-5
      • EN 60068-2-6
      • EN 60068-2-32
      • MET (UL) 60950-1
      • EN60950-1
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
    • Country of Origin
    • Taiwan
