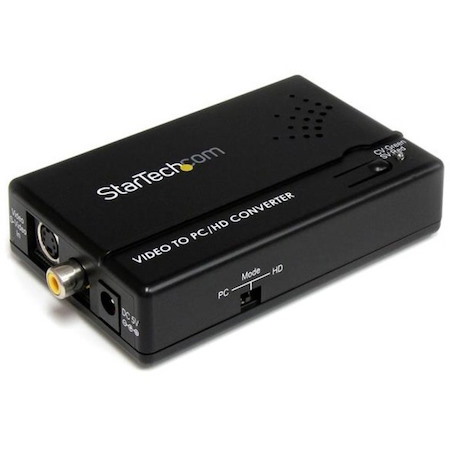

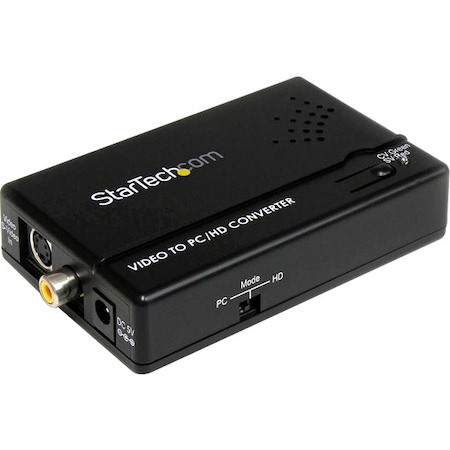

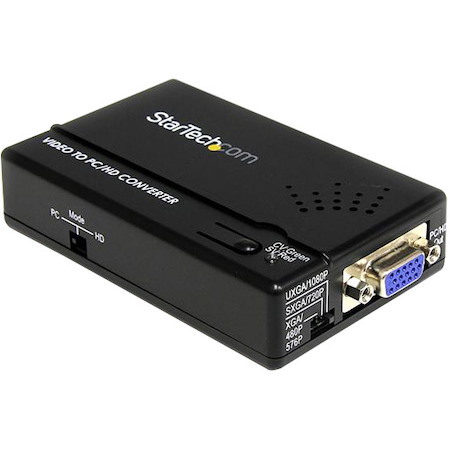

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets.
Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.
Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- Signal Converter
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Functions
- Signal Conversion
- Video Scaling
- Video Signal Format
- PAL
- NTSC
- Maximum Resolution
- 1600 x 1200
- Video Formats
- HDTV
- Platform Supported
- PC
- Analog Signal
- Yes
- Interfaces/Ports
- VGA
- Yes
- Number of VGA Outputs
- 1
- S-Video
- Yes
- Number of S-Video Inputs
- 1
- Composite Video
- Yes
- Number of Composite Video Inputs
- 1
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- External
- Height
- 1"
- Width
- 2.5"
- Length
- 4.4"
- Weight (Approximate)
- 0.19 lb
- Miscellaneous
- Package Contents
- Composite and S-Video to VGA Video Scan Converter
- VGA to Component (RCA) breakout cable
- Universal Power Adapter
- Instruction Manual
- Additional Information

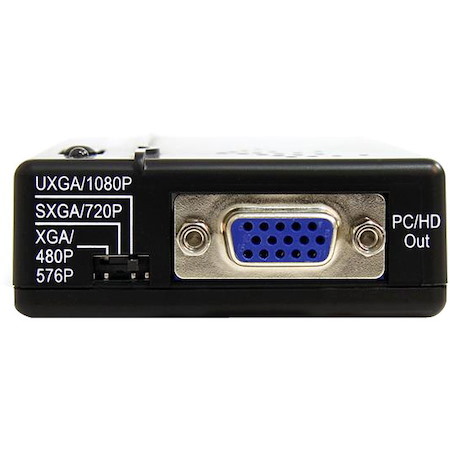

- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution
- Certifications & Standards
- CE
- FCC
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
