This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 16x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.
Metered Power Distribution Unit
Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.

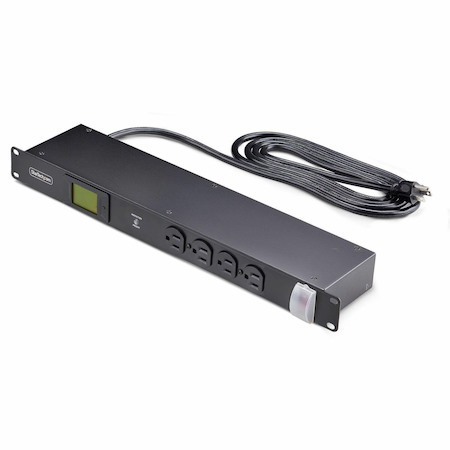

The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.
Enhanced Power Safety
The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection
Rack Mount Design
1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper
The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of eight electrical outlets, including six positioned at the rear and two at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- PDU
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- PDU Type
- Metered
- Plug/Connector Type
- NEMA 5-15P
- Plug/Connector Detail
- 1 x NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 16 x NEMA 5-15R
- Protection Type
- Surge Protection
- Circuit Breaker
- Features
- LCD Display
- LED Status Indicator
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 125 V AC
- 120 V AC
- Power Source
- Power Supply
- Input Current
- 15 A
- Circuit Breaker
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Cord Length
- 8 ft
- Height
- 1.7"
- Width
- 19"
- Length
- 3.8"
- Weight (Approximate)
- 4.40 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Operating Humidity
- 5%
- Maximum Operating Humidity
- 95%
- Minimum Storage Temperature
- 14°F (-10°C)
- Maximum Storage Temperature
- 122°F (50°C)
- Miscellaneous
- Package Contents
- 16-Outlets PDU
- Quick-Start Guide
- Application/Usage
- Server Rack/Cabinet
- Data Center
- Certifications & Standards
- EIA-310-D
- UL 60950-1
- UL1449 VPT 500V
- TAA Compliant
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
