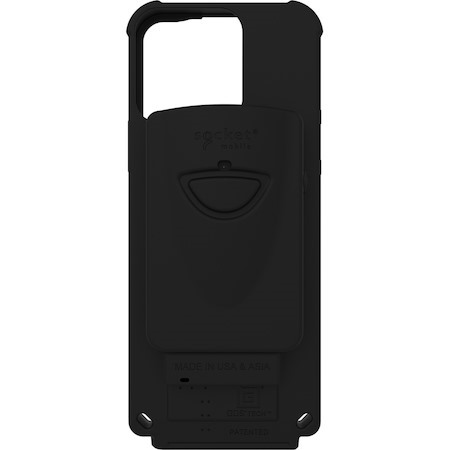

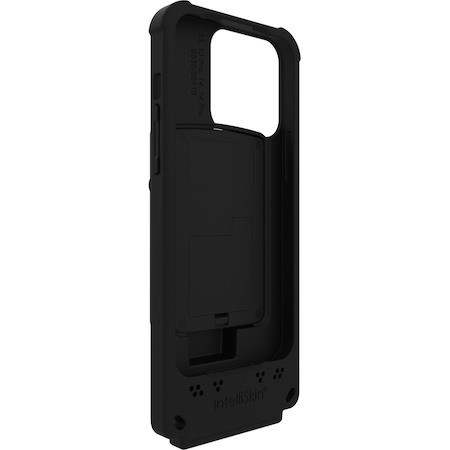

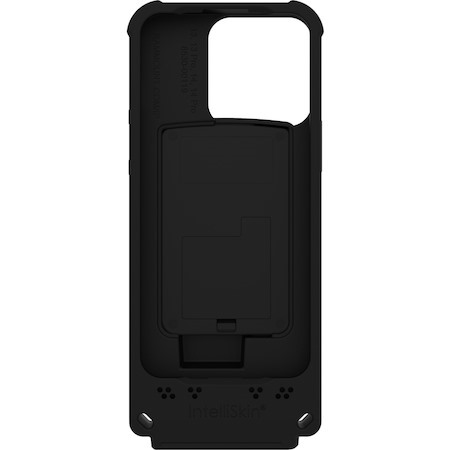

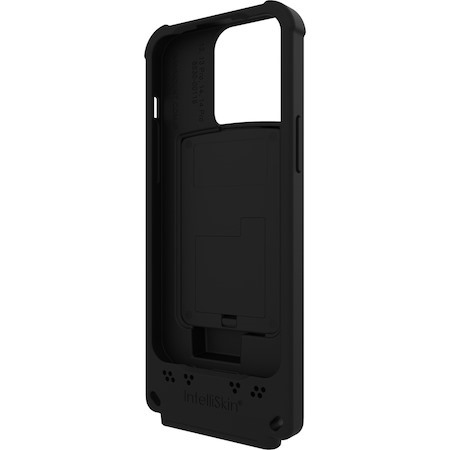

DuraSled DS860 Ultimate Barcode Sled Reader v21 & Dot Code Travel ID Reader for iPhone 13/14 & iPhone 13/14 Pro (Charger Sold Separately)

  • Part: 1965664
  • Model: CX4096-3163
$547.88

Availability

Out of Stock

Ultimate Barcode Scanning Sled

The DuraSled™ DS860 is the ultimate barcode scanning sled for 1D/2D barcodes and travel identification reading, with Bluetooth® wireless technology for iPhones and iPods. The DS860 scans 1D, 2D barcodes, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts and DotCode while the sled protects devices from tumbles. It is easy-to-use and ideal for the retail and travel industries; merchants can scan product barcodes and travel IDs with one device. Simply insert the iPhone/iPod, pair your scanner and you are ready to go.

The DuraSled supports iPhone 6, 7, 8, iPhone X series, SE 2022, and the entire iPhone 11 and 12 series. This makes it easy for workers to mix and match DuraSled™ solutions for iPhones, all while using the same accessories and application. The core components don't change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for years.

The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.

  • General Information
    • Manufacturer
    • Socket Mobile, Inc
    • Manufacturer Website Address
    • http://www.socketmobile.com
    • Brand Name
    • Socket Mobile
    • Product Line
    • DuraSled
    • Product Type
    • Barcode Scanner
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wireless
    • Scanning Capability
    • 1D
    • 2D
    • Barcode Symbology Supported
    • 1D:
      • Bookland EAN
      • Chinese 2 of 5
      • Codabar
      • Code 11
      • Code 39
      • Code 93
      • Code 128,
      • Composite CC-A/B
      • Composite CC-C
      • Composite TLC-39
      • Discrete 2 of 5
      • EAN-13/JAN 13
      • EAN-8/JAN8
      • GS1 Databar
      • GS1 Databar Expanded
      • GS1 Databar Limited
      • GS1-128
      • Interleaved 2 of 5
      • Inverse 1D
      • ISBT 128
      • ISSN EAN
      • Korean 3 of 5
      • Matrix 2 of 5
      • MSI
      • UPC-A
      • UPC-E/E1
      2D:

      • Aztec
      • Data Matrix
      • GS1 Data Matrix
      • DotCode
      • Han Xin
      • Maxicode
      • Micro PDF417
      • PDF417
      • GS1 QR
      • Micro QR
      • QR Code
    • Light Source
    • LED
    • Image Sensor Type
    • Imager
    • Scan Pattern
    • Omni-directional
    • Scanning Distance
    • 30"
    • Field of View (Horizontal)
    • 42°
    • Field of View (Vertical)
    • 28°
    • Maximum Ambient Light
    • 100000 lux
    • Drop Specification
    • Multiple drops to vinyl covered concrete at 3 feet or 1 meter

    • Minimum Print Contrast
    • 25%
    • Minimum Element Resolution (Code 39)
    • 4 mil
    • Maximum Element Resolution (Code 39)
    • 20 mil
    • Maximum Element Resolution (DataMatrix)
    • 10 mil
    • Image Sensor Resolution
    • 1280 x 800
  • Network & Communication
    • Bluetooth
    • Yes
  • Interfaces/Ports
    • Host Interface
    • USB
  • Battery Information
    • Battery Chemistry
    • Lithium Polymer (Li-Polymer)
    • Battery Capacity
    • 700 mAh
    • Battery Weight
    • 0.44 oz
    • Maximum Battery Recharge Time
    • 8 Hour
  • Environmental Conditions
    • Operating Temperature
    • 32°F (0°C) to 122°F (50°C)
    • Storage Temperature
    • -22°F (-30°C) to 158°F (70°C)
    • Humidity (Non-condensing)
    • 5% to 95%
  • Physical Characteristics
    • Form Factor
    • Handheld
  • Miscellaneous
    • Package Contents
      • DS860 barcode sled scanner
      • 1 Year limited Warranty on DuraSled barcode scanner
    • Compatibility
    • Apple - iPhone 13/14 & iPhone 13/14 Pro
    • Ingress Protection (IP) Rating
    • IP40
    • Application/Usage
    • Retail
    • Logistics
    • Healthcare
    • Hospitality
    • Platform Supported
    • iOS
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
