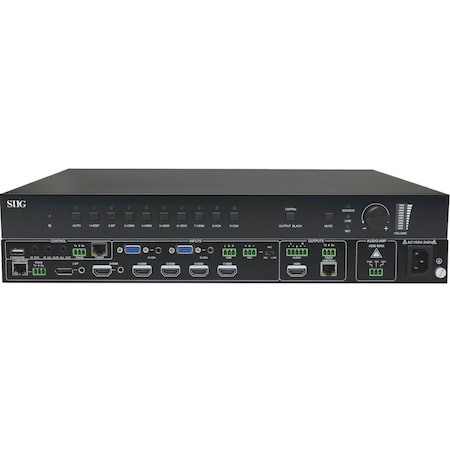

Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control
- Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously
- Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4
- Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p
- Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p
- Device switching controllable via push buttons, IR remote, RS232 and GUI
- Supports Bi-directional IR control and RS232 pass-through
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Audio/Video Switchbox
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 9
- Device Supported
- Display
- Number of Displays Supported
- 1
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- VGA In
- Yes
- DisplayPort
- Yes
- Connectivity (RJ-45)
- Yes
- Number of Connectivity (RJ-45) Ports
- 3
- Number of USB Ports
- 1
- Number of HDMI Inputs
- 5
- Number of HDMI Outputs
- 1
- Number of VGA Inputs
- 2
- Number of DisplayPort Inputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Operating Distance
- 328.08 ft
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 10.9"
- Weight (Approximate)
- 7.72 lb
- Miscellaneous
- Package Contents
- 9x1 HDBaseT 4K Scaler Switcher
- HDBaseT Receiver
- IR Receiver
- IR Emitter
- IR Remote
- Power Cord
- 4 x Switcher Plastic Cushions
- 4 x Receiver Plastic Cushions
- 2 x Switcher Mounting Ears
- 6 x Screws
- 2 x Receiver Mounting Ears
- 2 x Screws
- 6 x 3-pin phoenix connectors
- 5-pin phoenix connectors
- 2 x RS-232 cable (3-pin to DB9)
- User manual
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
