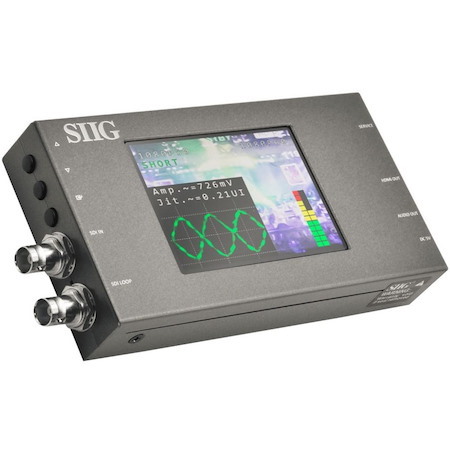

Converts 3G/HD/SD SDI signal to HDMI - 1080p@60Hz, audio extraction, SDI loop-out
- Conversion: 3G/HD/SD SDI signal to HDMI with resolution up to 1080p. This is not a bi-directional converter, DOES NOT work for HDMI to SDI conversion
- 3G-SDI: 1080p @60/59.94/50Hz; HD-SDI: 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz; SD-SDI: NTSC @59.94Hz, PAL @50Hz
- SDI Cable Runs: 3G-SDI (300ft), HD-SDI (500ft), SD-SDI (1000ft). Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270Mbps
- Advanced Features: SDI loop-out for a 3G/HD/SD-SDI monitor/display connection, audio extraction to stereo audio output (2Ch), noise reduction and video enhancement, Video H/V mirror, output test pattern display screen, and active video area adjustment
- High Quality Components: Made in Taiwan, TAA, FCC, CE and RoHS compliant. Metal housing with ESD protection
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Signal Converter
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Functions
- Signal Conversion
- Video Scaling
- Audio Extraction
- Video Signal Format
- NTSC/PAL
- Maximum Resolution
- 1920 x 1080
- Video Formats
- NTSC
- PAL
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- SDI
- Yes
- Number of SDI Inputs
- 1
- Physical Characteristics
- Height
- 1"
- Width
- 3.2"
- Depth
- 6.3"
- Weight (Approximate)
- 0.52 lb
- Miscellaneous
- Package Contents
- 3G-SDI to HDMI Converter with Scaler and Monitor
- Power Adapter 5VDC/2A
- Installation Guide
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
