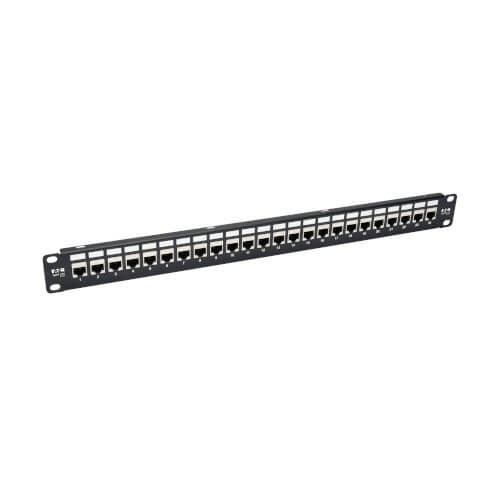

This 1U shielded Cat6a feed-through patch panel delivers high-performance, reliable connectivity in enterprise and data-center environments. Built with a robust full-metal housing and integrated EMI-shielding, it protects against crosstalk and external interference for 10 Gigabit Ethernet applications. Each port is a keystone-style feed-through opening, accommodating standard Cat6a keystone jacks for flexible configuration and easy field termination. Designed for a 19″ equipment rack, its low-profile form factor maximizes cabinet density while maintaining simple cable management with front-to-back routing. Ideal for mission-critical networks where signal integrity and secure, organized cabling are paramount.
Key Specifications
| Specification | Details |
|---|---|
| Form Factor | 1U, 19″ rackmount |
| Port Count | 24 feed-through keystone openings |
| Shielding | Full-metal housing with integrated grounding bar, RJ-45 shielding |
| Categories Supported | Cat6a (10 Gbps up to 100 m), backward compatible with Cat6/Cat5e |
| Jack Type | Keystone feed-through (accepts standard Cat6a keystone jacks) |
| Material | Cold-rolled steel with black powder-coat finish |
| Insertion Life | ≥ 750 mating cycles |
| Grounding | Rear grounding point; includes grounding lug |
| Operating Temperature | –10 °C to +60 °C (14 °F to 140 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Humidity | 10%–90% non-condensing |
| Dimensions (WxDxH) | 482 × 40 × 112 mm (19″ × 1.75″ × 4.4″) |
| Weight | Approx. 3.2 lb (1.45 kg) |
| Standards Compliance | ANSI/TIA-568.2-D; IEEE 802.3an; ISO/IEC 11801 Class Ea; RoHS, UL94 V-0 |
| Cable Management | Front cable guide bar; rear tie-down points for strain relief |
| Mounting Hardware | Includes (4) M6 cage nuts and mounting screws |
This patch panel provides a reliable, easy-to-maintain infrastructure backbone for high-density network deployments, ensuring consistent performance and simplified future upgrades.
